109

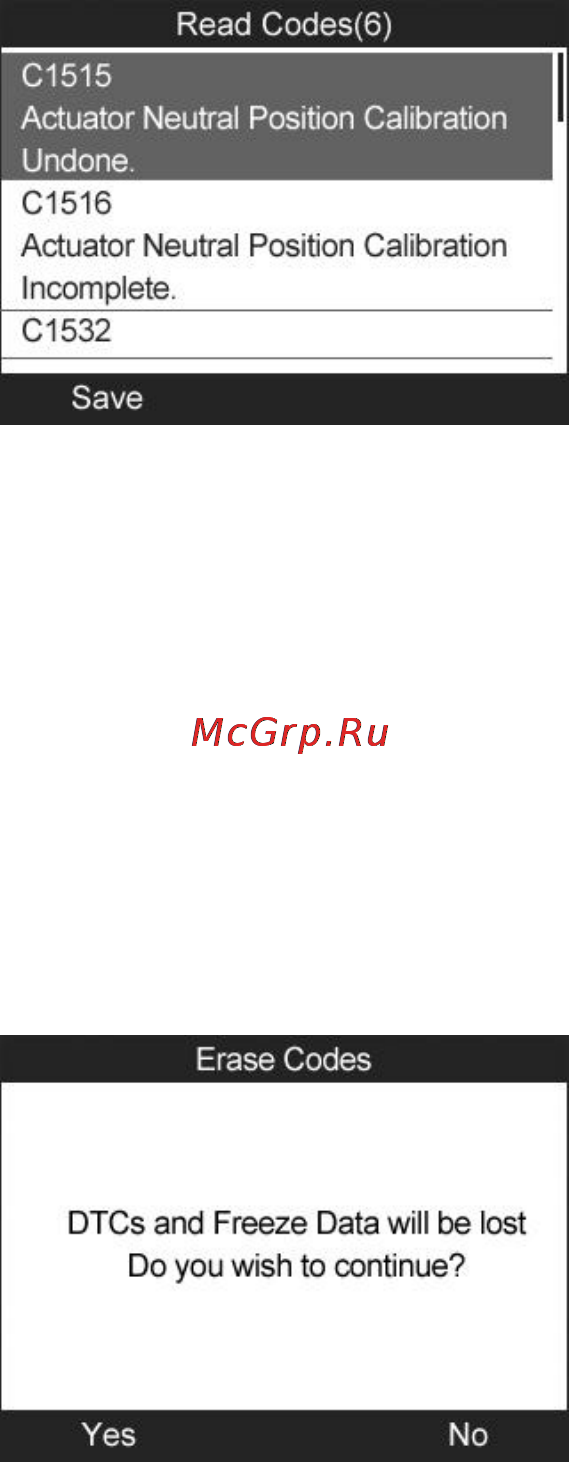

2) View DTCs and their definitions on screen.

Figure 13.3

3) Select Save option to store the codes or press ESC button to

exit without saving.

13.2 Erase Codes

This function allows user to erase the SAS DTCs in vehicle ECU.

1) From the function menu (Figure 13.2) use the UP/DOWN

scroll button to select Erase Codes and press the OK button.

2) A warning message will come up asking your confirmation.

Figure 13.4

3) Select Yes to continue or No to exit. When the command is

sent, the tool will display a message as below:
