Руководство пользователя Страница: 126

Autel MOT PRO [126/157] Www autel russia ru

125

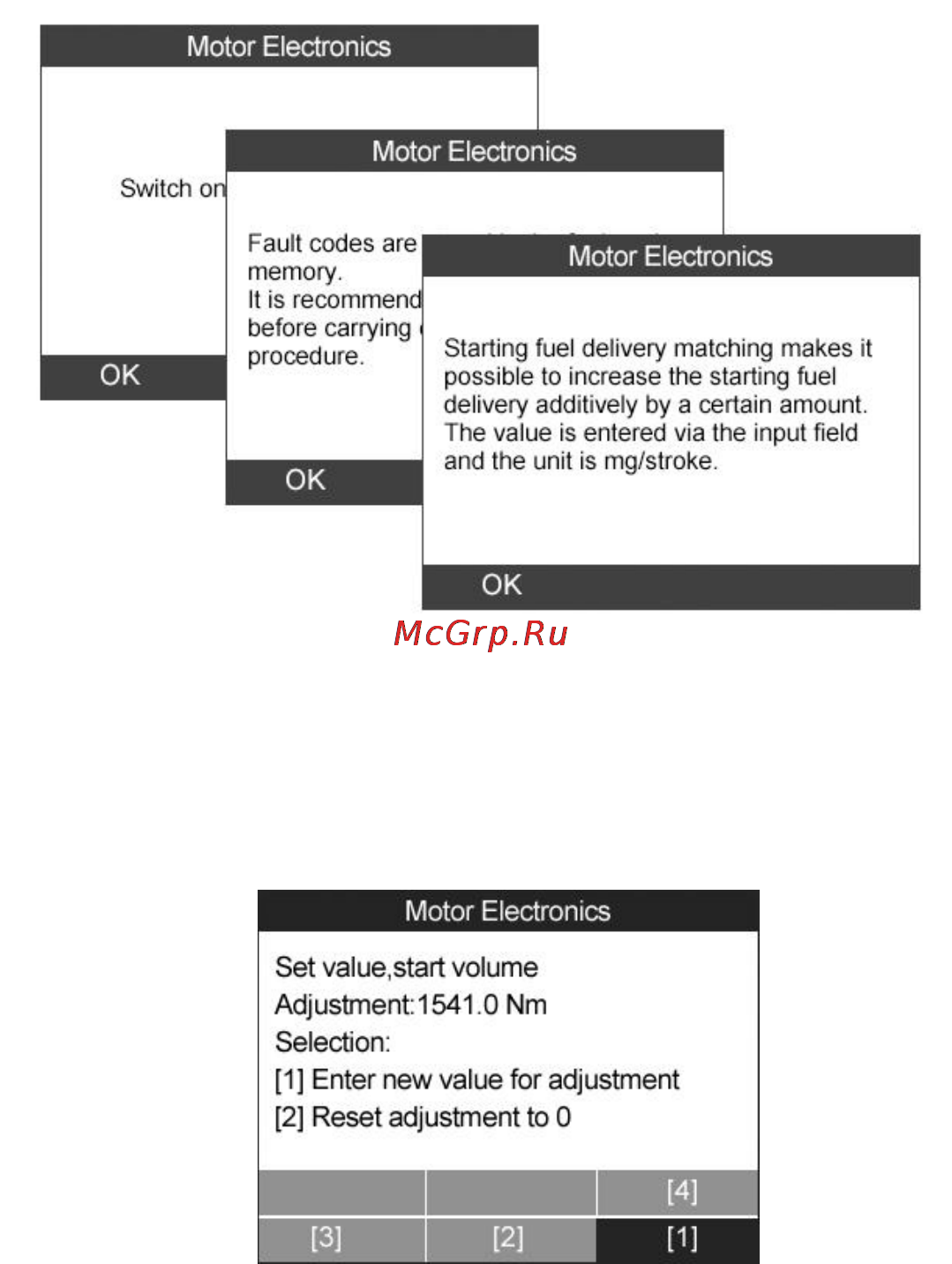

2) The tool communicates with the vehicle and reads the fault

codes memory. Follow the on-screen instructions to finish this

procedure.

Figure 14.12

3) The tool will display a function list menu as below. In this menu,

you can enter new value for adjustment, or reset adjustment to

Figure 14.13

The option keys at the bottom of the screen work as below.

【1】Enter new value for adjustment
