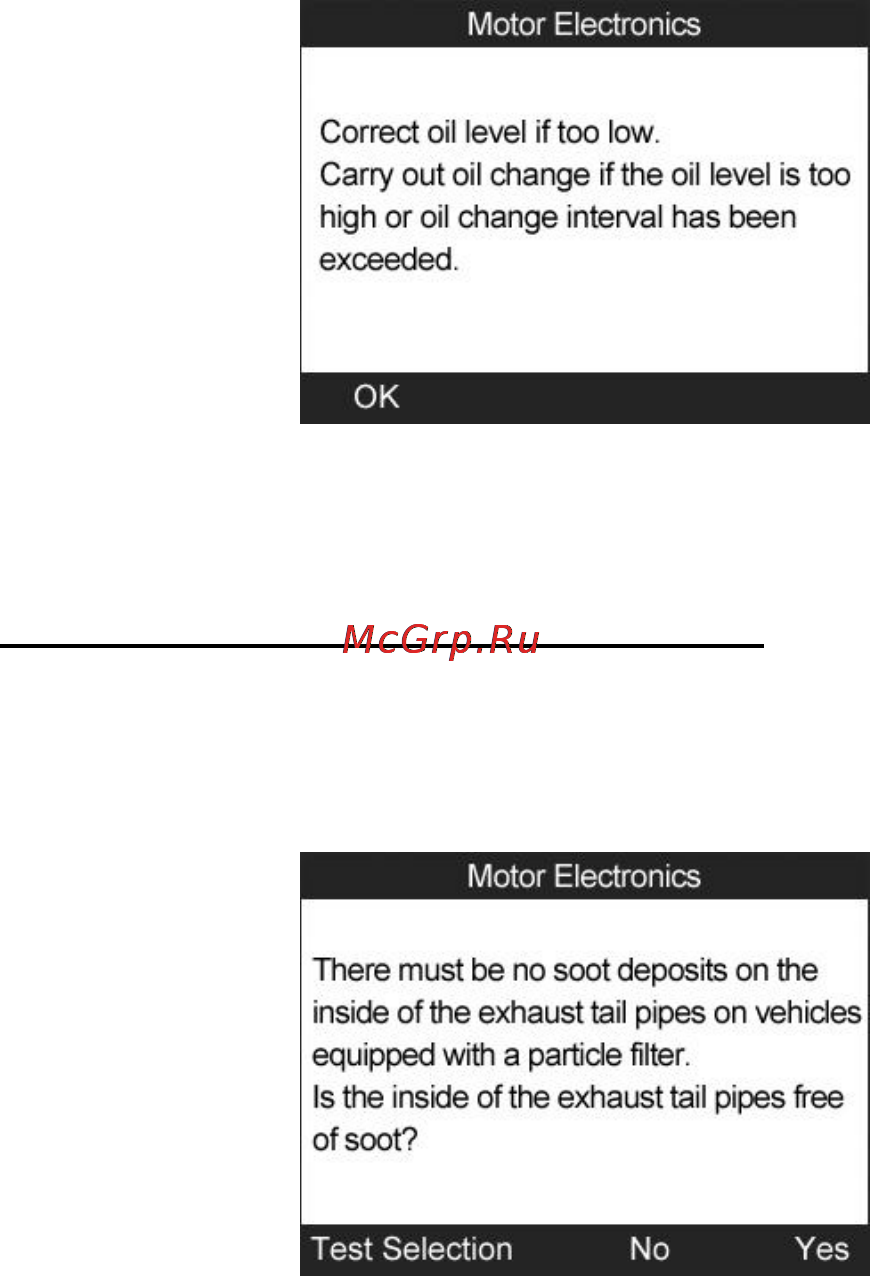

Figure 14.32

d) Or, select Test Selection to return to previous menu.

【2】Visual inspection of particulate filter

a) From the particle filter test menu (Figure 14.29) use the

LEFT/RIGHT scroll button to select 【2】and press the OK

button.

Figure 14.33

b) Select Yes if you visually find no soot on the inside of the

exhaust tail pipes. The tool displays as below. Press OK button

to return to previous menu.
