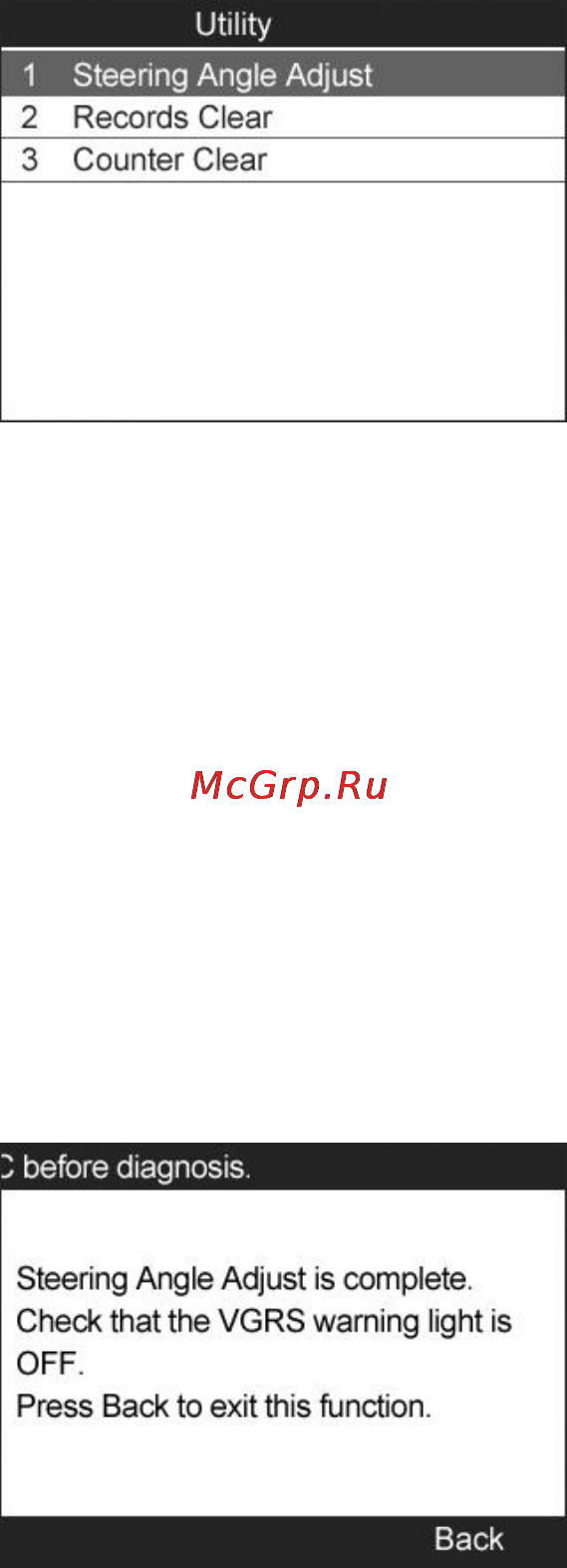

Figure 13.11

A. Steering Angle Adjust

1) From the Utility function menu (Figure 13.11) use the

UP/DOWN scroll button to select Steering Angle Adjust and

press the OK button.

2) The tool will display a series of instructions. Follow the

onscreen instructions step by step until the operation is

completely finished. If the operation is finished successfully, the

scan tool will display a confirmation message. (Figure 10.12)

Otherwise, it will display a message to remind user of a problem.

After you exit the diagnosis program, please repair the problem

immediately.

Figure 13.12

B. Records Clear
