111

This function enables users view SAS-related data readings from a

selected ECU. With the live data screen displayed, you can view the

data in Text or graphical format, record and save files for later

viewing, pause the readings and view past data, and more.

From the function menu (Figure 13.2) use the UP/DOWN scroll

button to select Live Data and press the OK button.

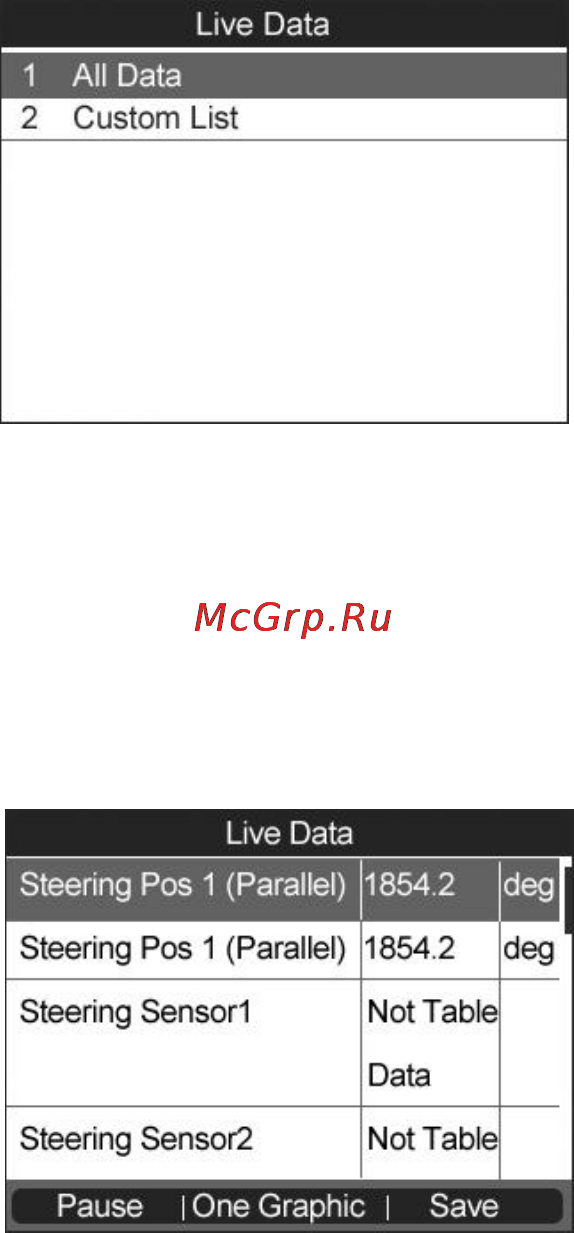

Figure 13.7

A. All Data

1) From the Live Data menu (Figure 13.7), use the UP/DOWN

scroll button to select All Data and press the OK button.

2) The tool will display a list of all live sensor data. (Figure 13.8)

Figure 13.8

 Press the corresponding FUNCTION BUTTON ‘Save’ to store

the retrieved live data for later playback or printing.
