Руководство пользователя Страница: 93

Autel MOT PRO [93/157] Www autel russia ru

select Yes to continue, otherwise select No to return to previous

screen.

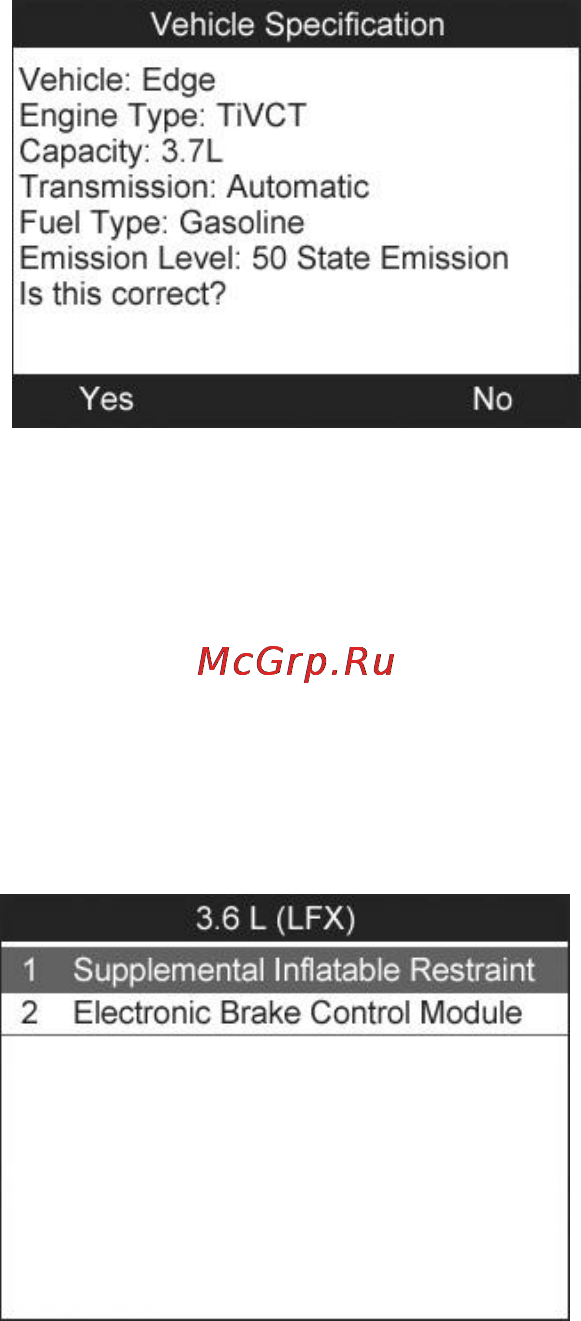

Figure 12.11

After the vehicle information is entered correctly, you will need to

select SRS and ABS systems as below.

12.2 ABS Diagnostics

After the vehicle information is entered correctly, select ABS system

to perform ABS diagnostics. Take GM as an example.

Figure 12.12

From the ABS and SRS menu use the UP/DOWN scroll button to

select Electronic Brake Control Module and press the OK button.

The screen displays as below.

www.autel-russia.ru
