150

viewing, sort the data, pause the readings and view past data, and

more.

From the TPMS diagnostic function menu (Figure 6.1), use the

UP/DOWN scroll button to select the Live Data, and press OK

button.

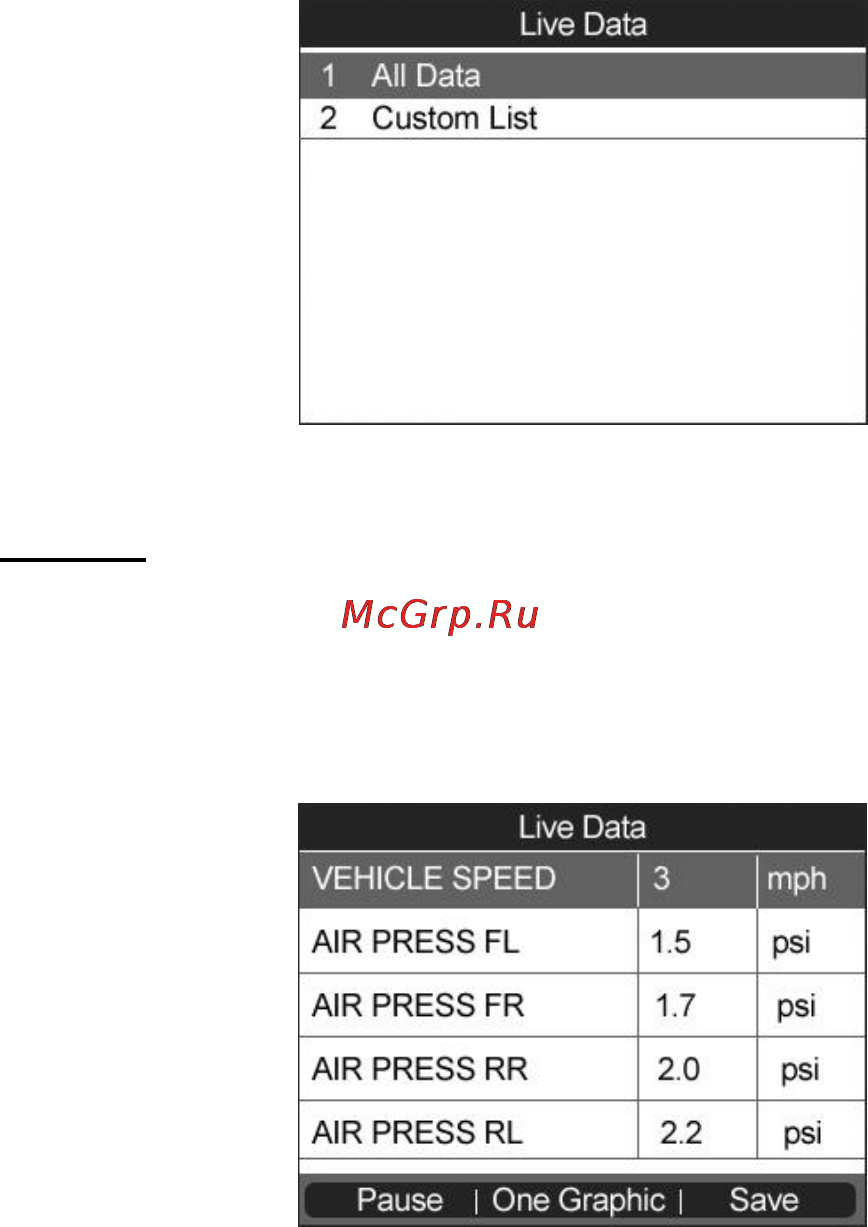

Figure 15.5

All Data

1) From the Live Data menu (Figure 15.5), use the UP/DOWN

scroll button to select All Data and press the OK button.

2) The tool will display a list of all live sensor data. (Figure 6.6)

Figure 15.6

 Press the corresponding FUNCTION BUTTON ‘Save’ to store

the retrieved live data for later playback or printing.

 Press the corresponding FUNCTION BUTTON ‘Stop Save’ to

stop saving data and resume live sensor data retrieving.
