Autel MOT PRO [146/157] Www autel russia ru

145

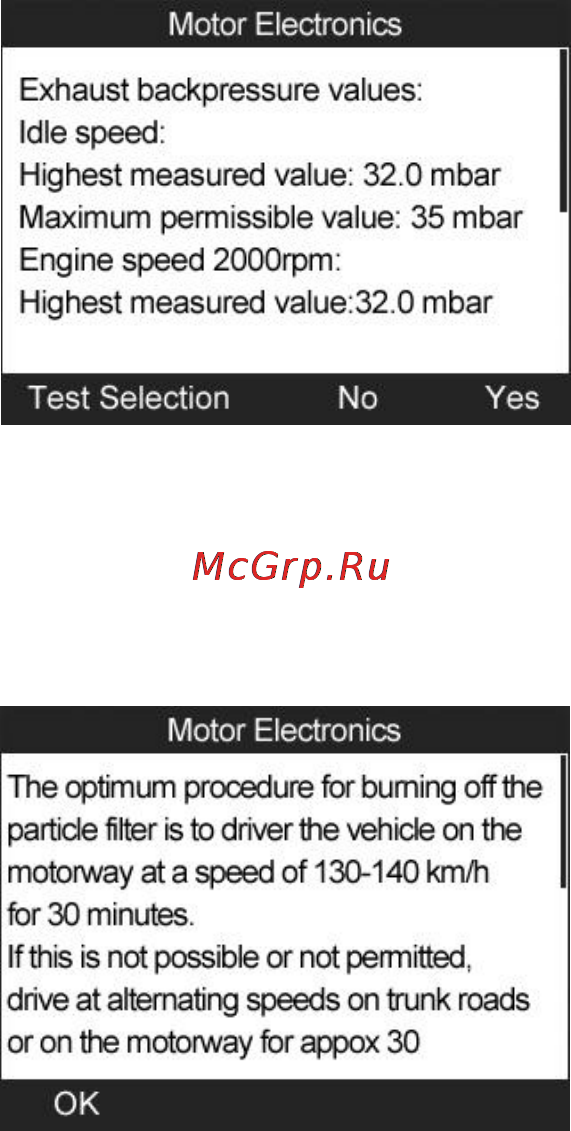

f) The tool will submit a summary report for your

confirmation.(Figure 14.46)

Figure 14.46

g) Select Yes if the actual values exceed the limits. The tool

displays an instruction message as below. Press OK button to

return to previous menu.

Figure 14.47

h) Or, select No if the actual values are within the limits, then the

tool will return to previous menu.

www.autel-russia.ru
