DNS-6040M/DNS-6040 User’s Manual

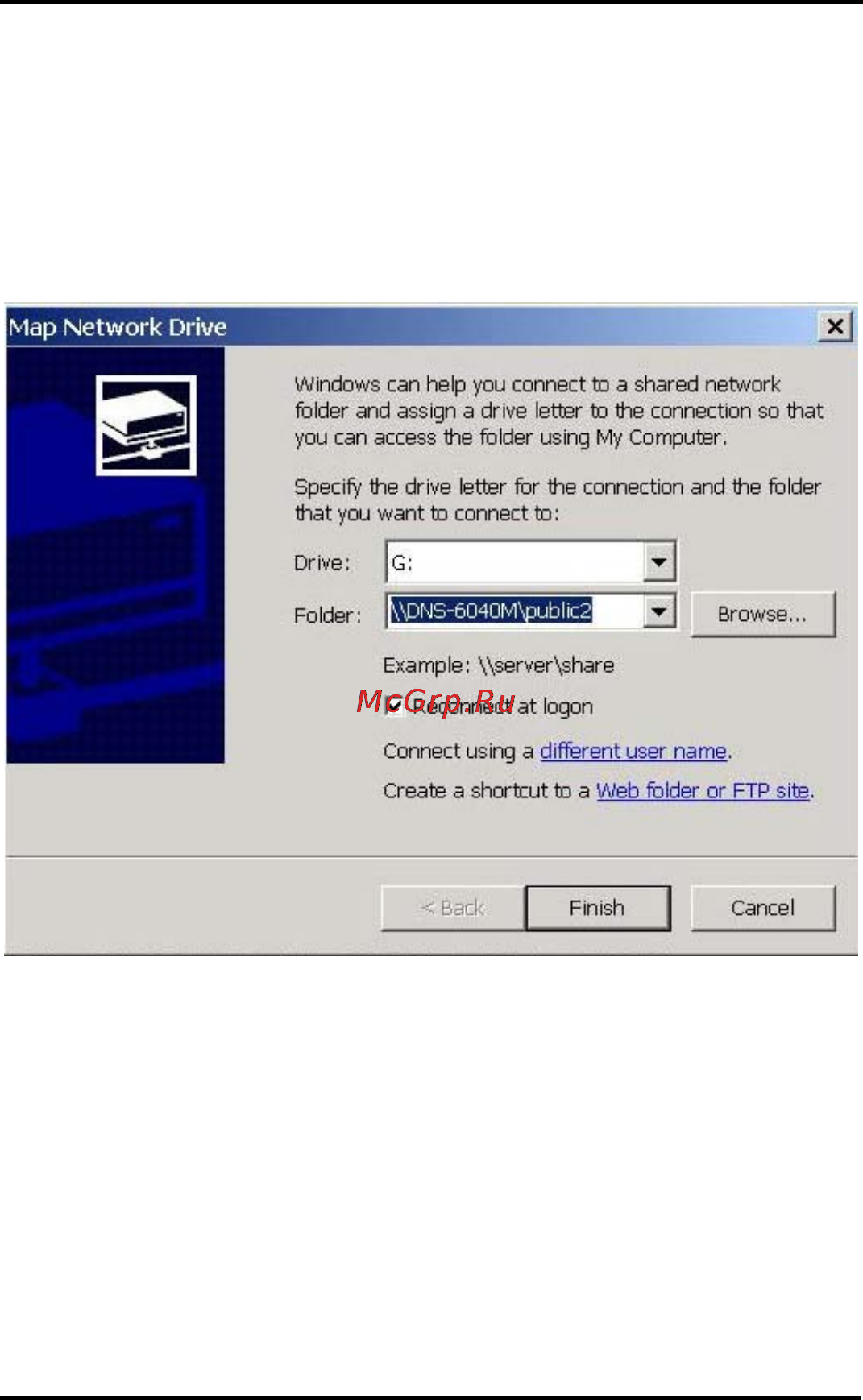

In addition, after setting up the network configuration, the

system administrator or users can run D-Link NAS Filer

Assistant Utility and click on the Map Drive button to connect

all shared folders with access privileges as network drives.

Please pull down the path column to find the accessible shared

files on the NAS server.
