DNS-6040M/DNS-6040 User’s Manual

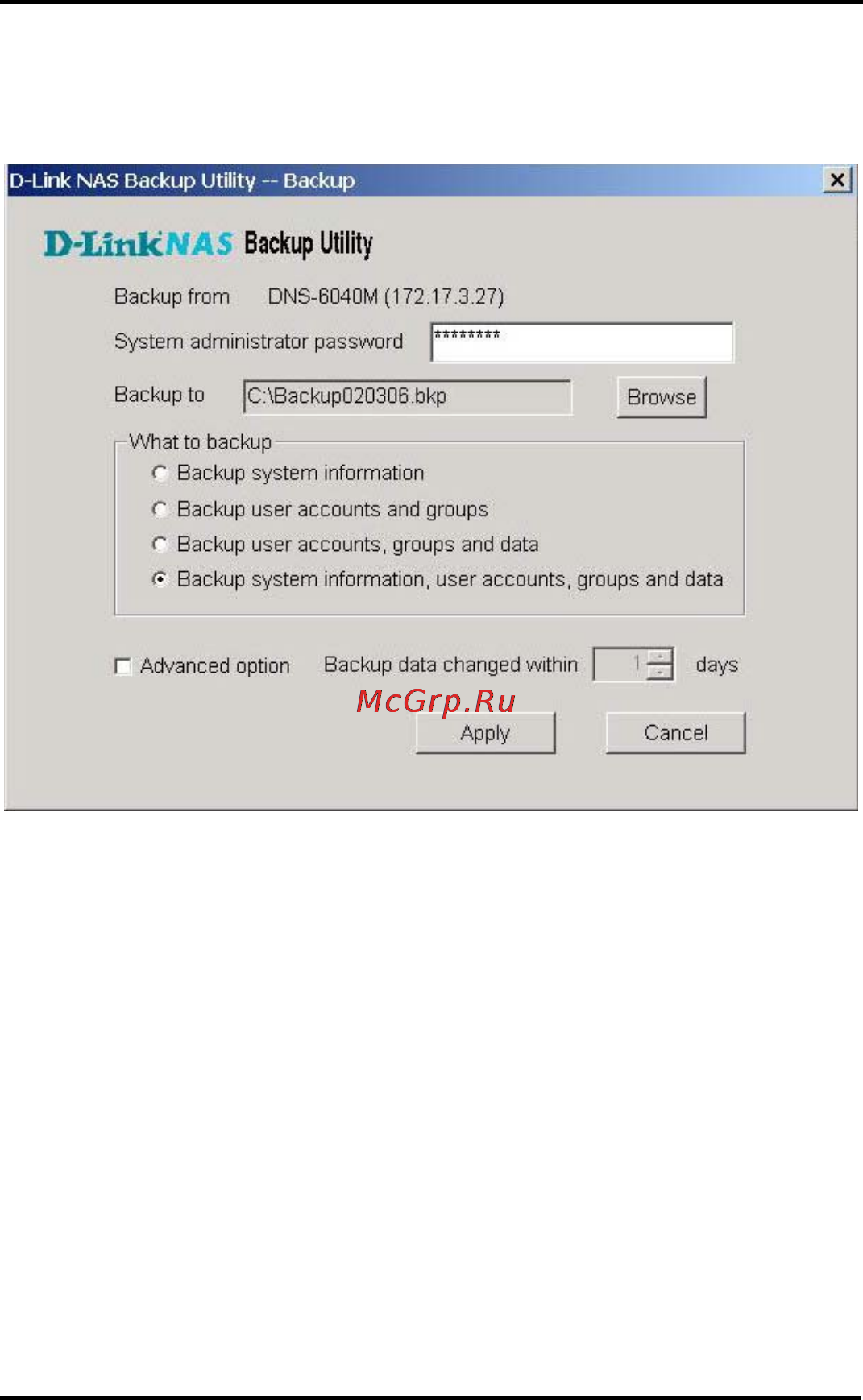

open the backup window.

 Enter the System administrator (root) password.

 Choose the path to store the backup file (*.bkp) by clicking on Browse.



Choose what type of data to be backed up. When backing up “User

accounts, groups, and data”, if the administrator has backed up the

NAS server a few days ago, he/she can select the Advanced option for

“incremental backup”. This allows backing up only the changed data

of the past few days and could save time and the storage space. Below

are 2 examples for the incremental backup:
