DNS-6040M/DNS-6040 User’s Manual
101

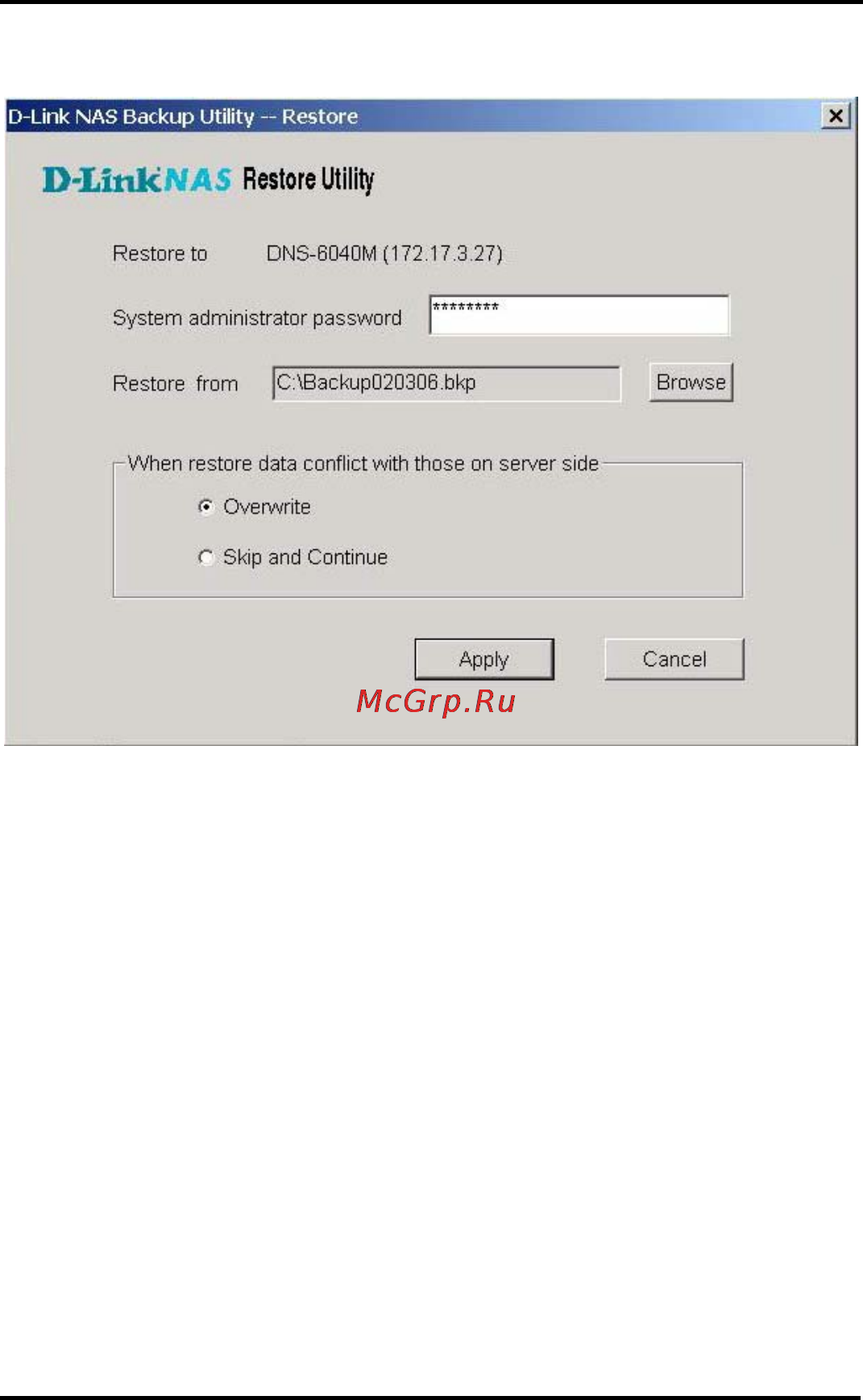

Enter the System administrator (root) password.
Browse for the correct path. If only the changed data was backed up in
the past, restoring each “.bkp” file chronologically is necessary. As in
the previous example, the system administrator needs to restore “Data
0101.bkp”, followed by restoring “Data 0101_0105.bkp”. This way
complete data can be restored dating back to January 5.
When restored data conflict with existing data on the server, overwrite
or skip the existing data on the server. Under “Overwrite”, “shared
folder” will be used by the system for reference; if the names of the
shared folders appear to be the same, the system will overwrite all data
in this folder automatically. Under “Skip and continue”, on the other
hand, “file” will be used as a reference by the system; if the names of
