DNS-6040M/DNS-6040 User’s Manual
102

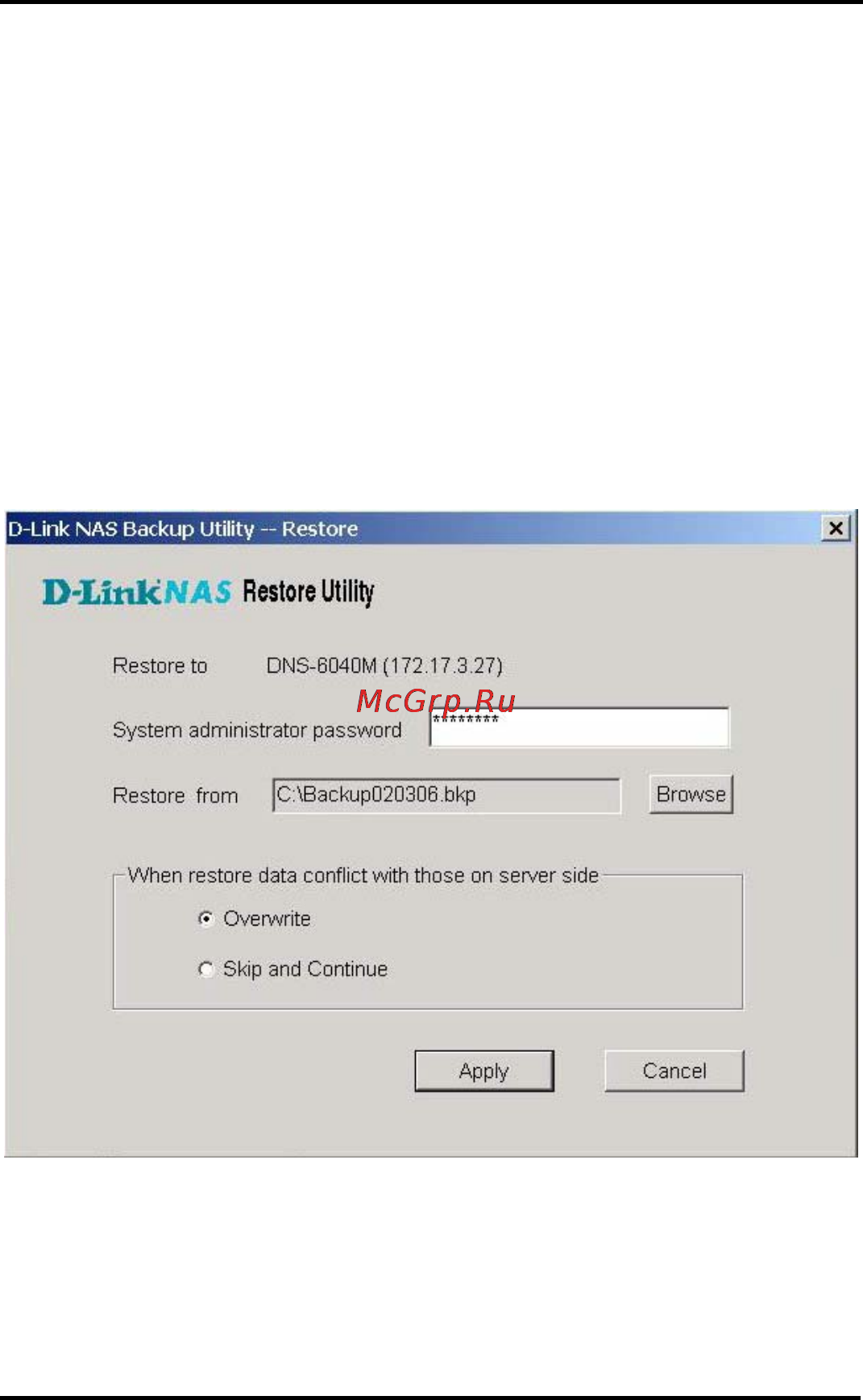

the shared folders are the same on both NAS server and the intended to
be restored file “.bkp”, the system will not skip this folder but instead
combine the data of both folders. The only exception: if this folder is
some user’s home folder, and the home folder on the NAS server and
the home folder of the “.bkp” file do not belong to the same user, this
home folder will be skipped as a whole for security reasons and will
not be combined by the system
Click Apply to enter into another page to select restored information.
Select what item(s) you want to restore.
Click Apply. The system starts the back up process. Click Report to
review the backed up data after the back up process is finished.
