DNS-6040M/DNS-6040 User’s Manual

115

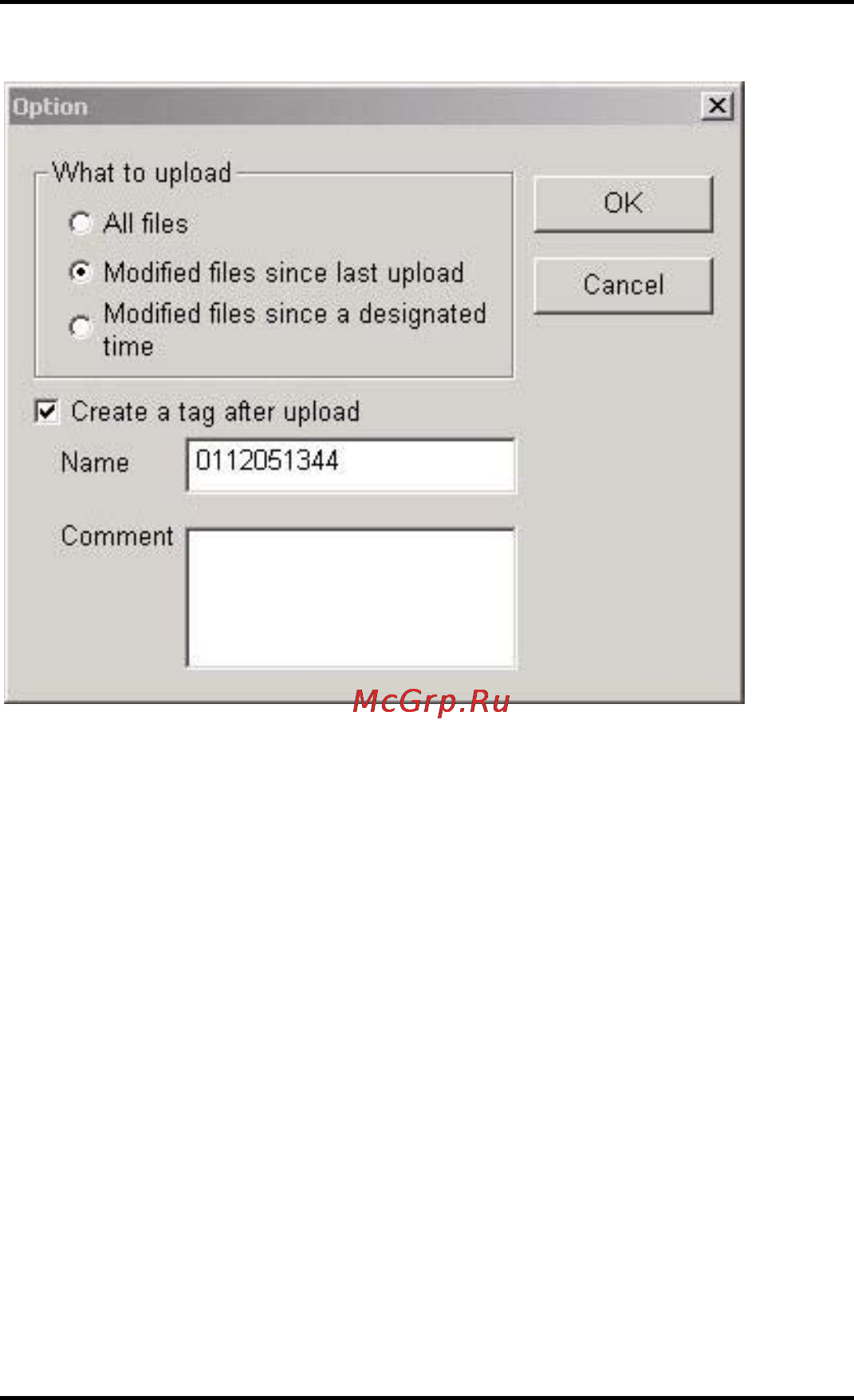

Files Filtering

User may choose not to backup non-essential files

(e.g. .tmp or temporary files created by Windows client)

To setup not to backup by file type, click Filter on the right

and add specific file extension or prefix to avoid backing up of

files with the extension/prefix.
