DNS-6040M/DNS-6040 User’s Manual

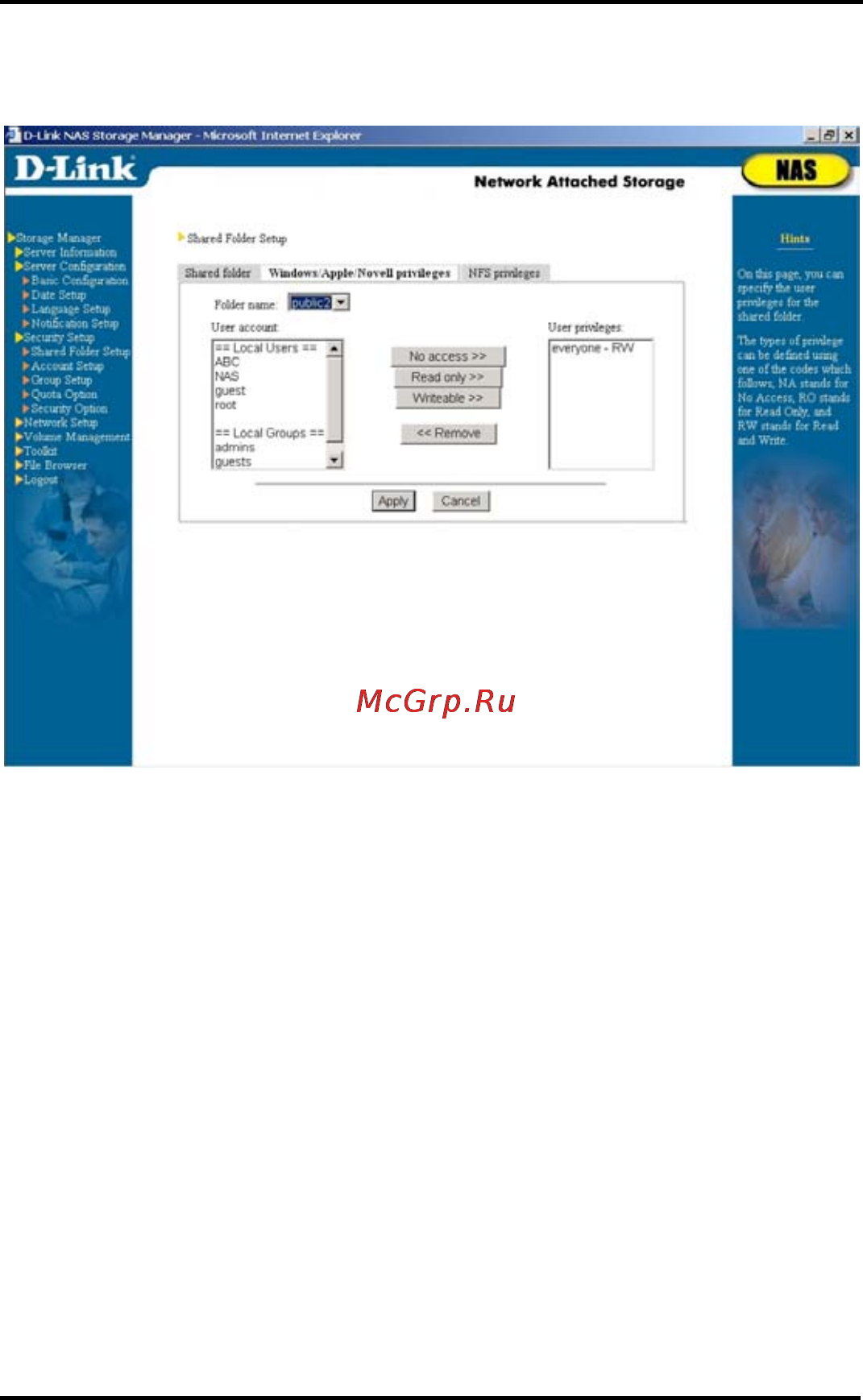

Windows/ Apple/ Novell User Privileges

The system administrator can use this setting to assign

access privileges for local users/groups (i.e.

Windows/Apple/Novell clients with accounts on the NAS server)

and Windows domain users/groups. Use the mouse to choose a

folder in the Folder name list, the User privileges column will

show all the users or groups entitled to access the selected

folder.
