DNS-6040M/DNS-6040 User’s Manual
38
NFS Privileges
Use this option to set NFS (Solaris, FreeBSD or Linux and
other UNIX family clients) access privileges for shared folders.

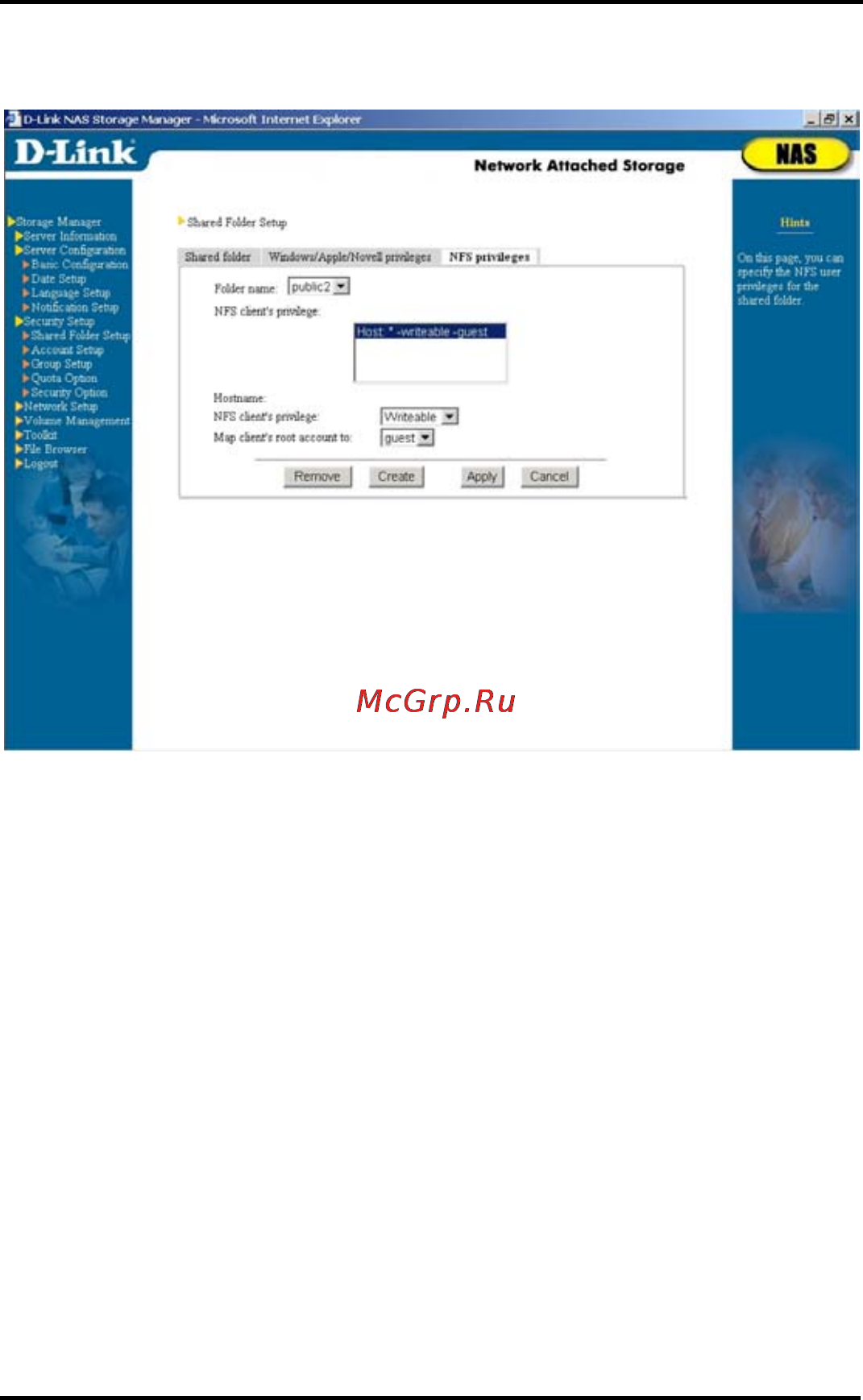

Enter the Shared Folder Setup
NFS Privileges
page, and
select the desired shared folder in the Folder name
column. The
NFS client’s privilege column below will show the hosts and
subnets or net groups with access privileges and the type of
permission granted.
NFS client’s privilege consists of three components:
The first component is the subject sharing a folder, either a host,
subnet, or a net group. The entry Host:* means the folder is shared
between all hosts.
The second component is the share mode, such as read only or
writeable.
The third element is a local user name. The administrator root of a
NFS client can only access the folder with this ID.
