DNS-6040M/DNS-6040 User’s Manual
39
The root of some clients and the NAS root can be
owned by different users. Unless you wish to manage a
shared folder from a client terminal as root, you should
for security reasons always assign the terminal root to a
non-root ID.
Adding NFS user privileges

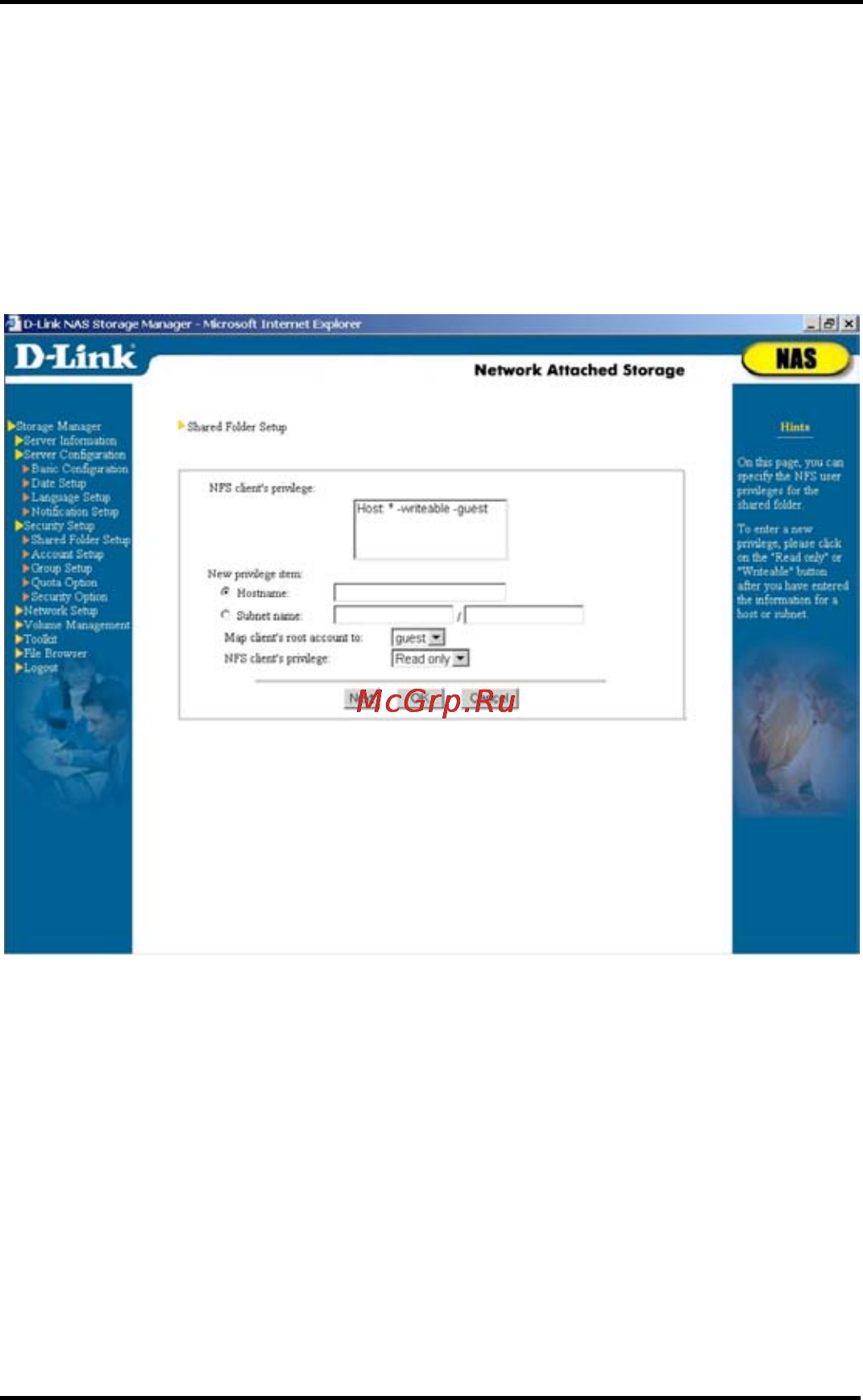

To add NFS user privilege settings, click on Create. A new
page will appear. Enter the hostname, subnet (format:
subnet/subnet mask, e.g. 192.168.1.0 / 255.255.255.0), or net
group (only available if the NAS server joins the NIS domain.
Under Map client’s root account to column, choose a local user,
and then set the NFS client’s privilege to read only or writeable.
Click OK to confirm your selection and return to the previous
page, or click Next to add another client.
