DNS-6040M/DNS-6040 User’s Manual
49
account. We recommend the system administrator to disable this
function, since The DNS-6040 Series only supports a maximum
of 128 user groups, and the NAS server would therefore not be
able to be integrated into the NIS domain if there are more than
128 user groups.

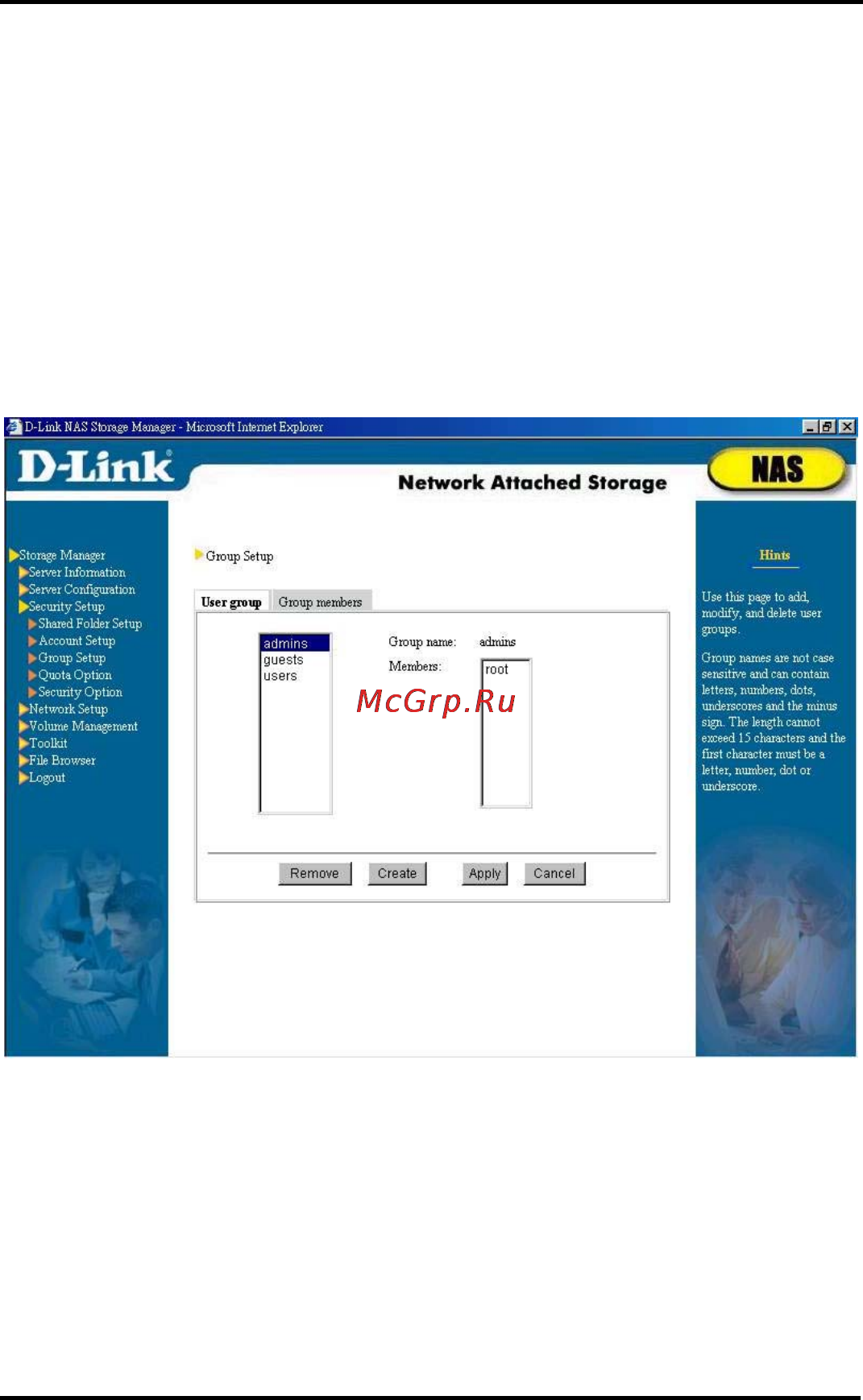

Group Setup
User Group
Use this page to add, modify or delete user groups.
The
DNS-6040 Series
allows up to 128 user groups (including user
groups on the local machine, Windows PDC and NIS server).
The name of a group cannot exceed 15 characters. The
name can be formed by double-byte character languages, the
same as the language of the Storage Manager interface, such as
Traditional Chinese, Simplified Chinese, etc., single-byte
languages such as English, German, Spanish, etc., numbers,
