DNS-6040M/DNS-6040 User’s Manual

Adding user groups

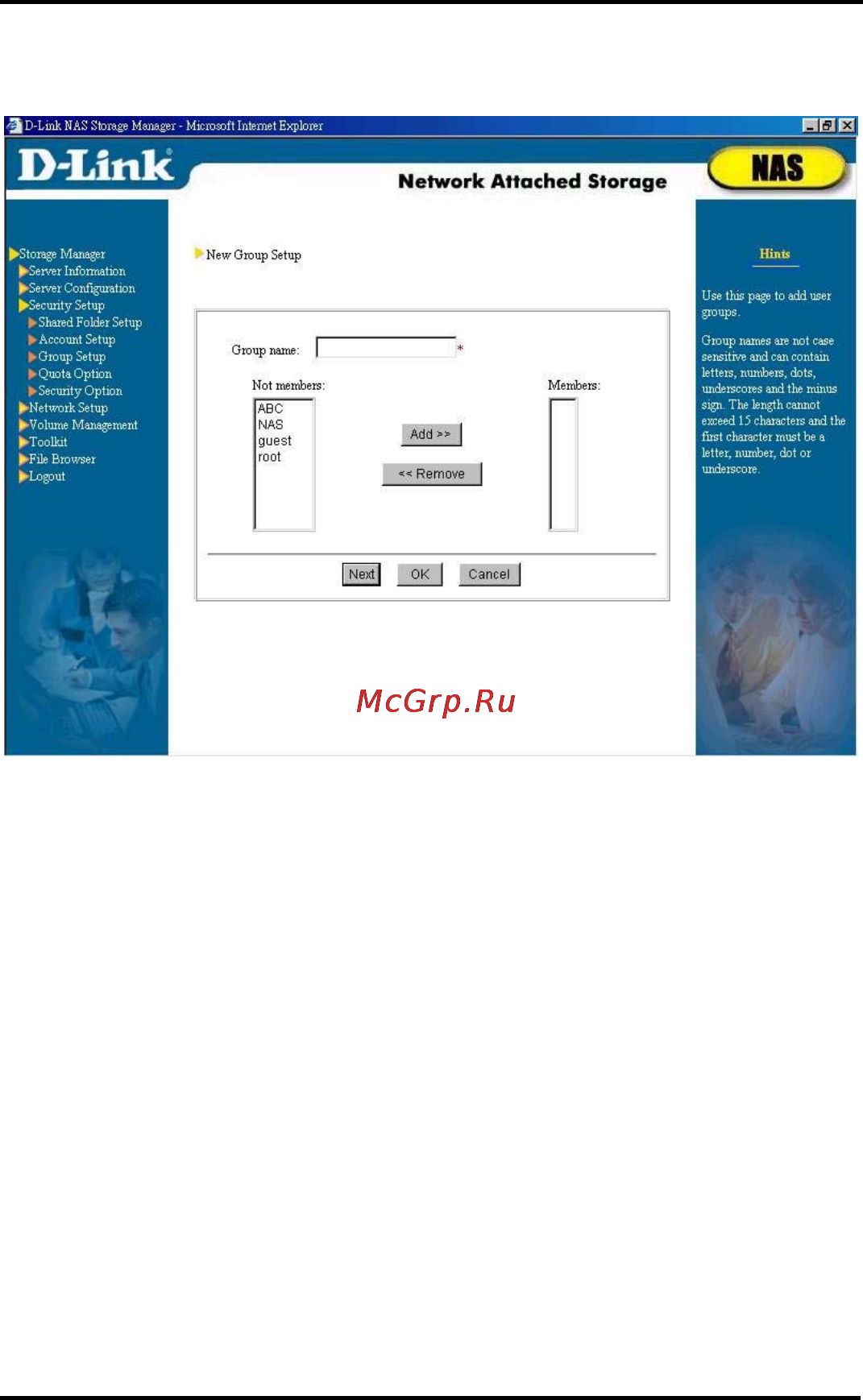

To add a new group, click Create. The New Group Setup

page appears. Enter a name for the group, and select the

members of the group in the Not members list (use Ctrl for

multiple and Shift for continuous selection). Click on Add to add

the selected members. Select OK to confirm the operation, or

Next to add more groups.

Deleting User Groups

To delete a group, select the group in the list (use Ctrl for multiple and

Shift for continuous selection), and then click Remove.
