DNS-6040M/DNS-6040 User’s Manual
53

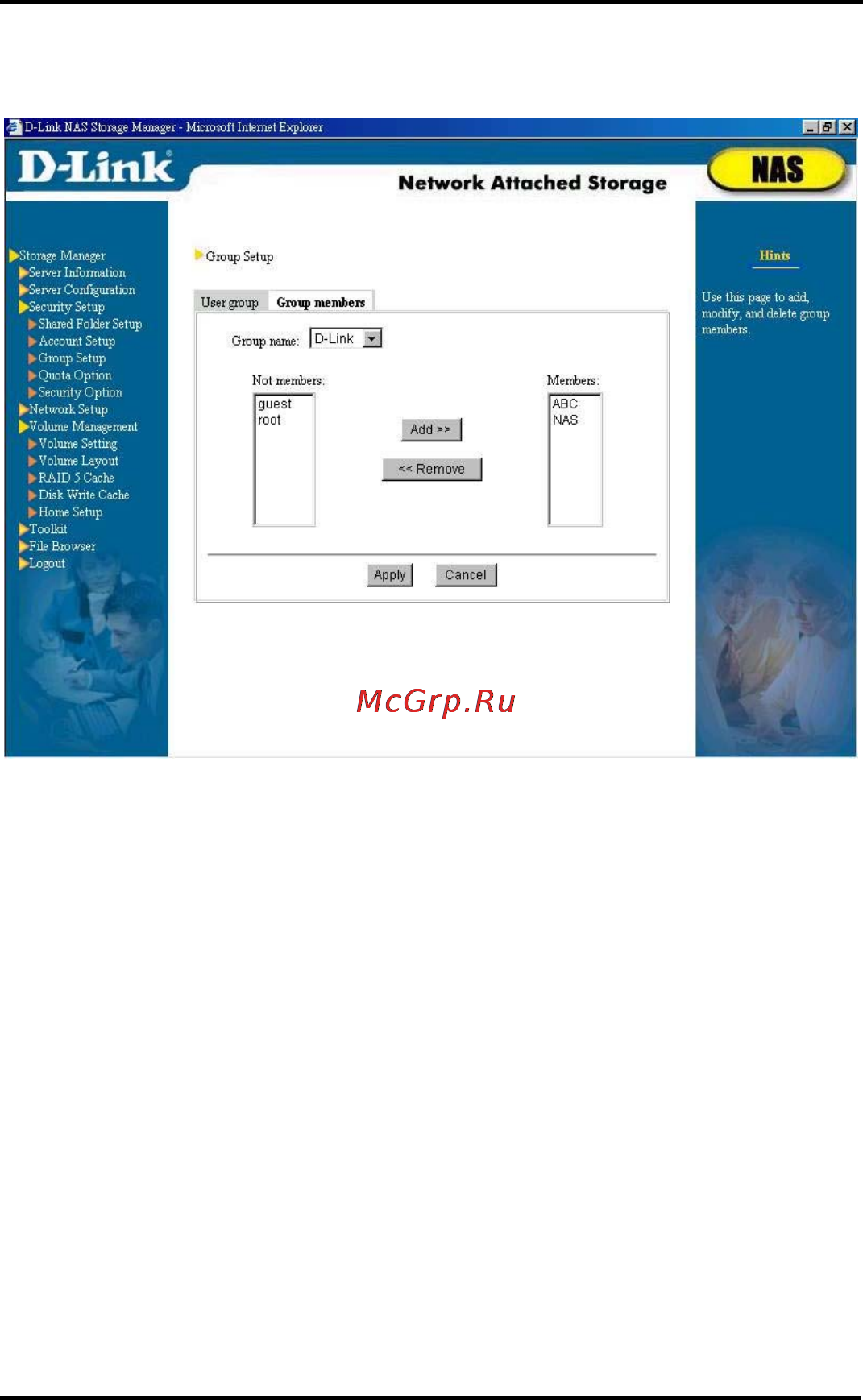

Group members
Use this page to add, modify, and delete group members.
The Members
field contains existing members. Users not
belonging to this group are listed on the left Not members field.
If this NAS server belongs to a Windows NT/2000 domain
and (1) the system administrator has previously moved
Windows PDC users in the Account Setup page to the local
accounts or (2) both NAS server and Windows PDC have the
account with the same name, those Windows domain users will
NOT appear in the list of members. Instead, only local users will
be shown to avoid multiple selection and assignment to a group
of the same user.
Adding group members
To add a new group member, select the target group from
the list, and then select the members you wish to add in the Not
members list (use Ctrl for multiple and Shift for continuous
selection). Then click Add.
