DNS-6040M/DNS-6040 User’s Manual
55

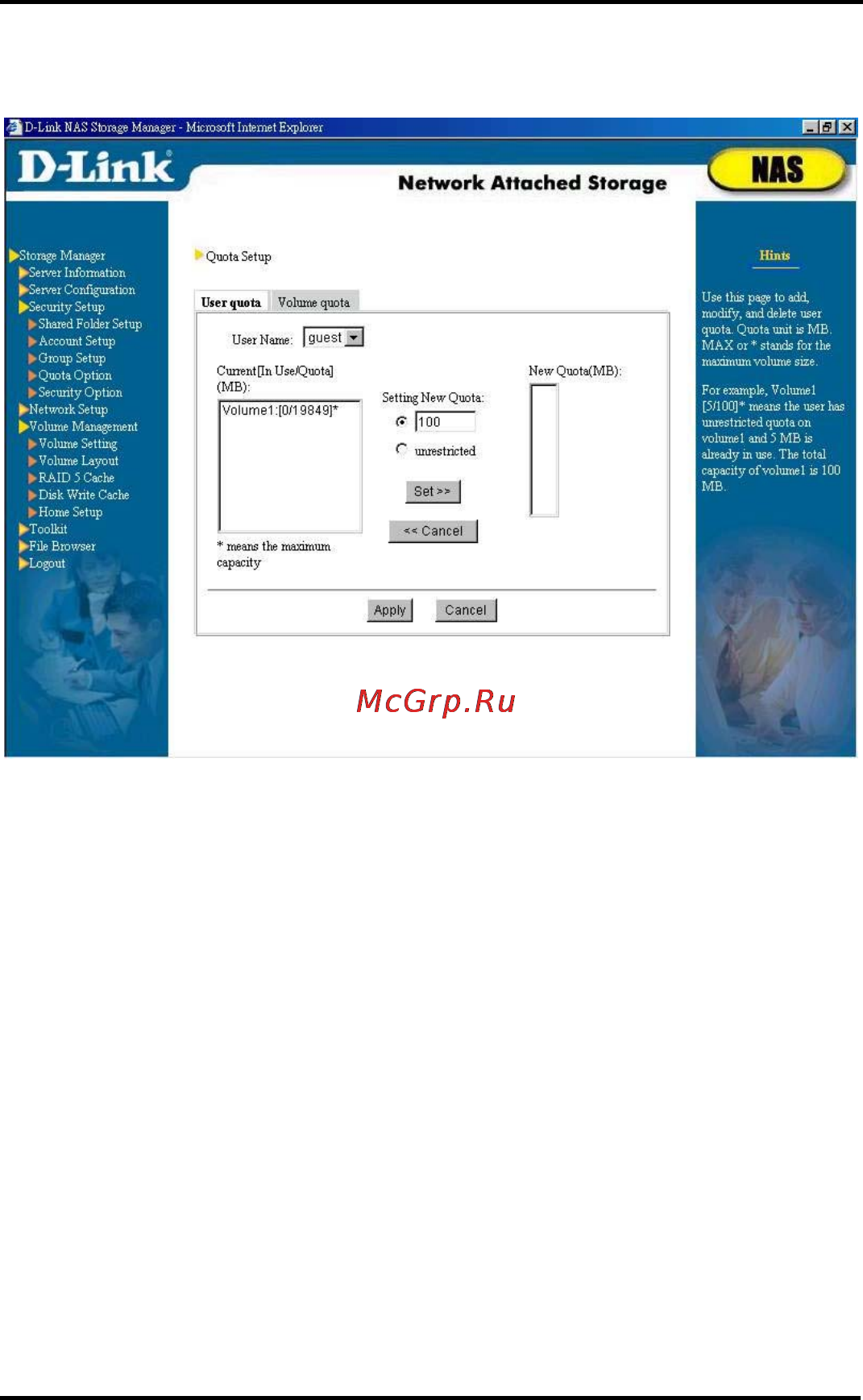

User Quota
The system administrator can add, modify or delete user
quota through this screen.
Current [In Use
／
Quota] (MB) column indicates the quota
and amounts of space used in each volume by the current
account. The symbol "*" in this column means the account is
assigned the maximum quota. For example, Vo l u me 1 :
[200/500] means that volume1 has 500MB quota available and
of which 200MB has already been used. Additionally,
Volume2: [200/1000] means the current account has the
maximum space available in volume2, i.e. 1000MB, of which
200MB has already been used.
To change user quota, please select either Local, Windows
domain or NIS domain account in User Name. Then select the
item to be changed in the Current [In Use/Quota](MB) column,
setup new quota in Setting New Quota and click Set>> button.
Repeat these steps if quotas for more than one volume require
