DNS-6040M/DNS-6040 User’s Manual

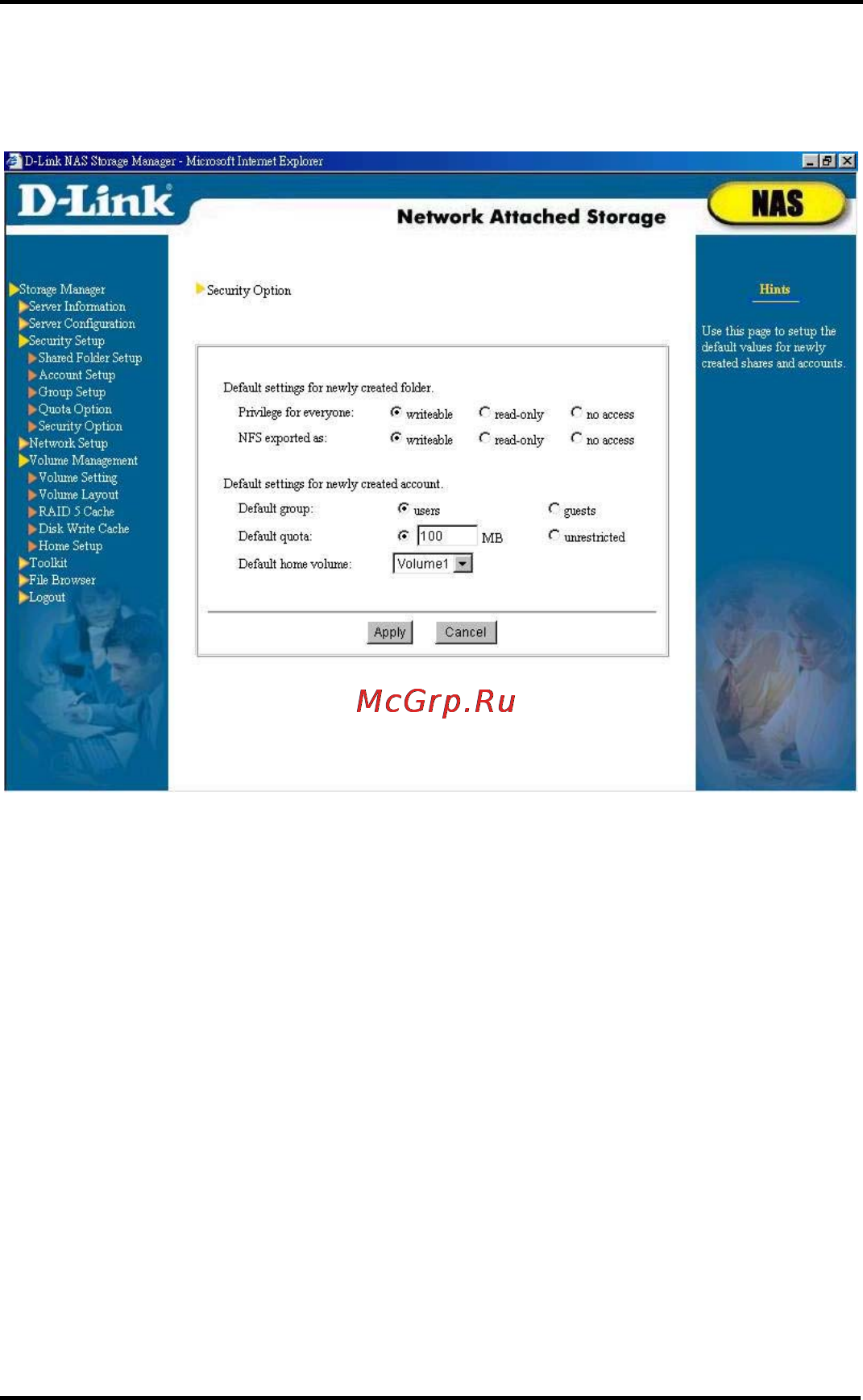

Security Options

The system administrator can use this page to modify the

preferences of newly created shared folders and user accounts.

Default settings for newly created folders

1. NFS exported as: ○ writeable ○ read-only

New folders can be exported either with full read and

write permissions, i.e. writeable, or with write protection,

i.e. read-only.

2. Privileges for everyone: ○ writeable ○ read-only

This setting determines whether Windows, Apple and

Novell users have by default full read and write

permissions, i.e. writeable, or can only read newly created

folders, i.e. read-only.
