DNS-6040M/DNS-6040 User’s Manual

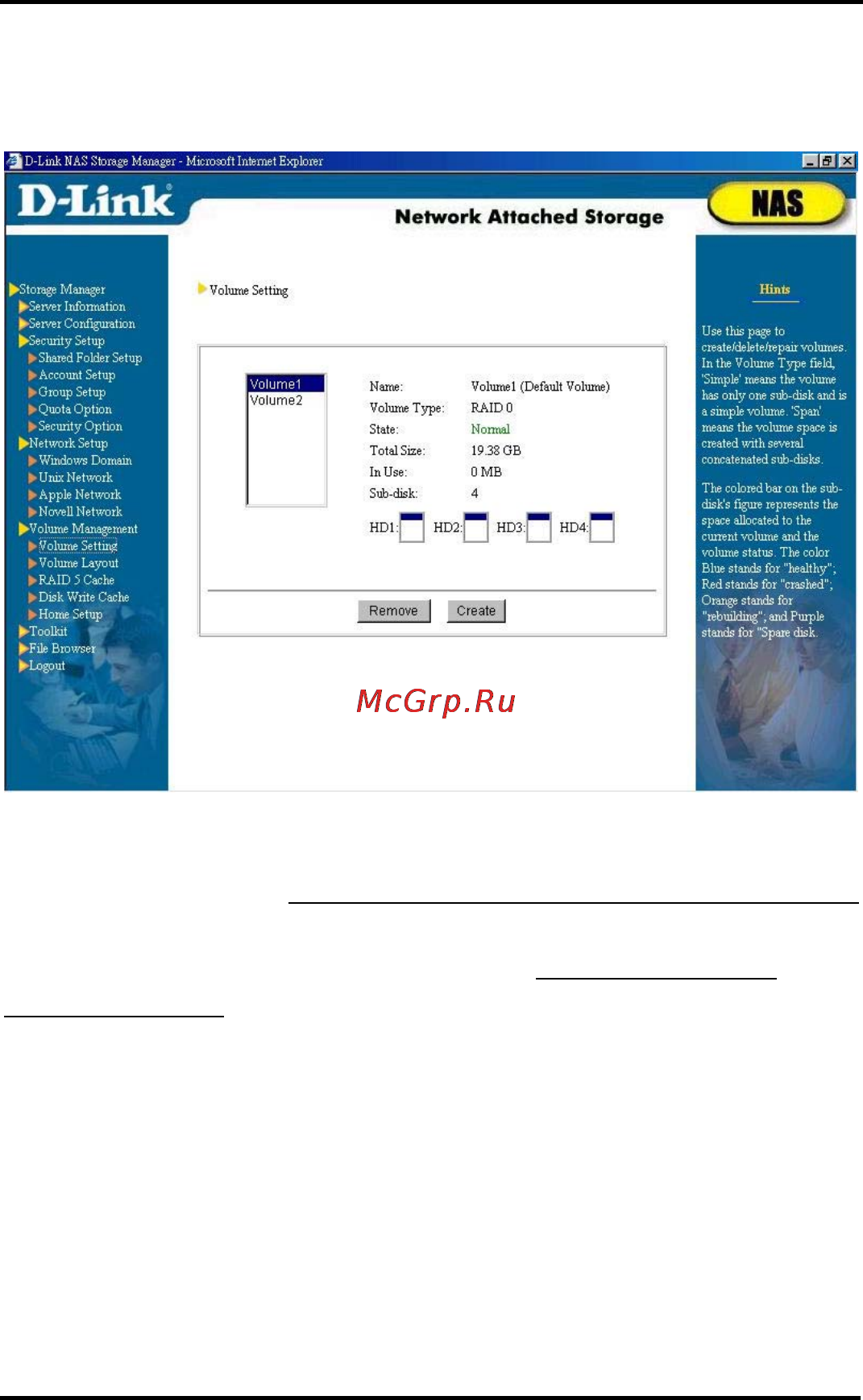

Volume Setting

System administrator can create/remove/repair volume

through this page. The maximum number of volumes this

system can support is 1.5 times of the total number of hard disks

Thus in a model with four hard disks, the system can create at

the most six volumes, i.e. (4*1.5), etc. There is no need to

restart the server for volume creation, removal or repair to take

effect.
