DNS-6040M/DNS-6040 User’s Manual
71
Create New Volume

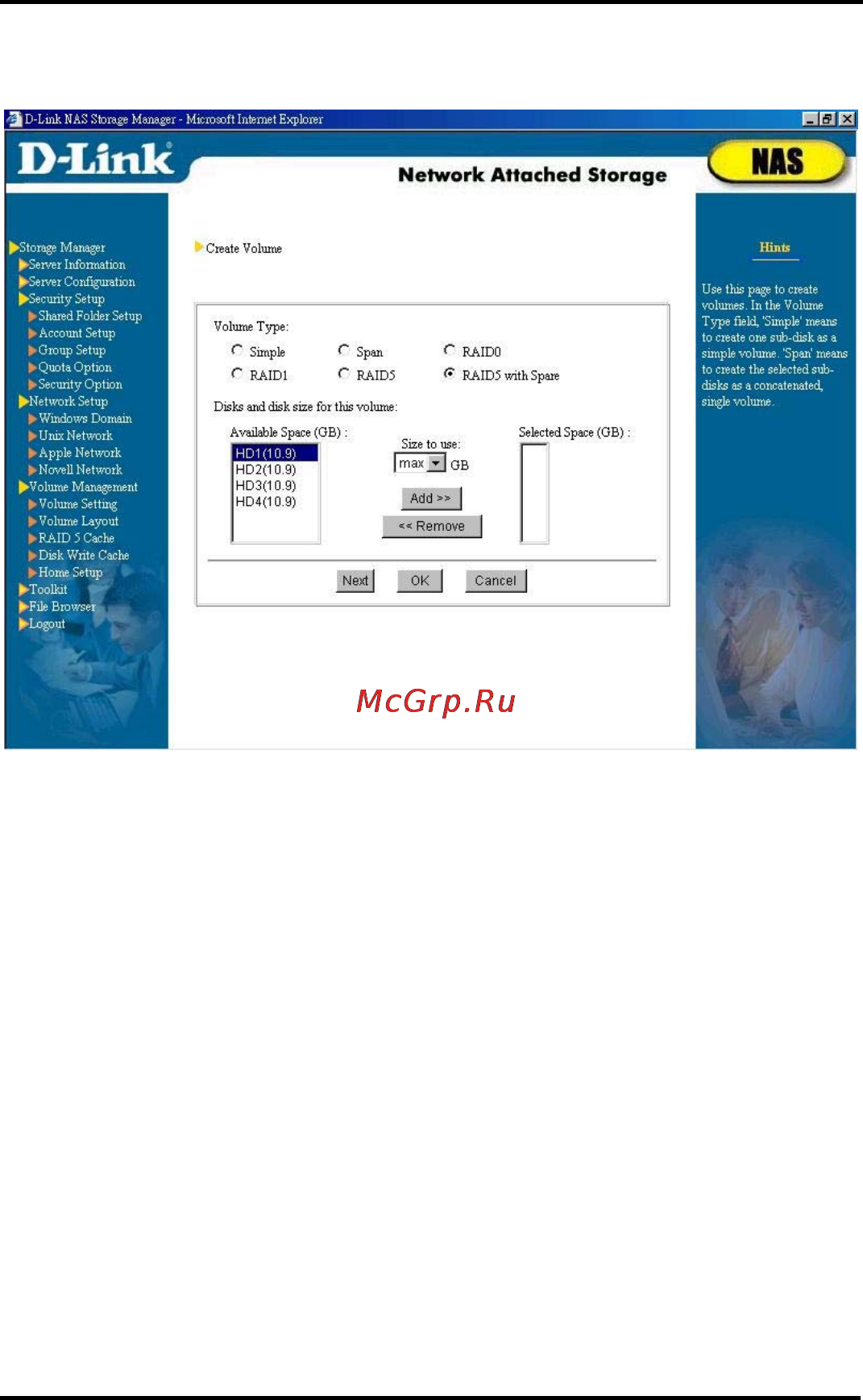

To create a new volume, click Create button to enter into
the Create Volume page.
First, click Vo lume Ty p e . This system supports six
volume types: Simple, Span, RAID 0, RAID 1, RAID 5, and
RAID 5 with hot spare.
Next, determine which hard disk storage space will make
up the volume. The Available Space column indicates space in
each hard disk that has not yet been allocated. After hard disk
is selected, setup Size to use, click Add to add to the volume.
This step is similar to the utility that allows for segmentation of
a large hard disk into smaller segments to achieve more flexible
hard disk space utilization. The Selected Space column will
display all disk space to be added to the volume. After
confirmation, click OK to start creating the new volume.
System administrator can display Creating Process Status to
check the progress of volume creation.
