DNS-6040M/DNS-6040 User’s Manual
76
For example, assume volume2 is a volume of RAID 5,
which is created from hard disks 1, 2 and 3, each with 10GB
disk space. When disk 2 is damaged, the State column in Volume
Setting page will display degrade indicating though this volume
can still be accessed but it is supporting these tasks with less
than normal working condition. Click the Repair button in the

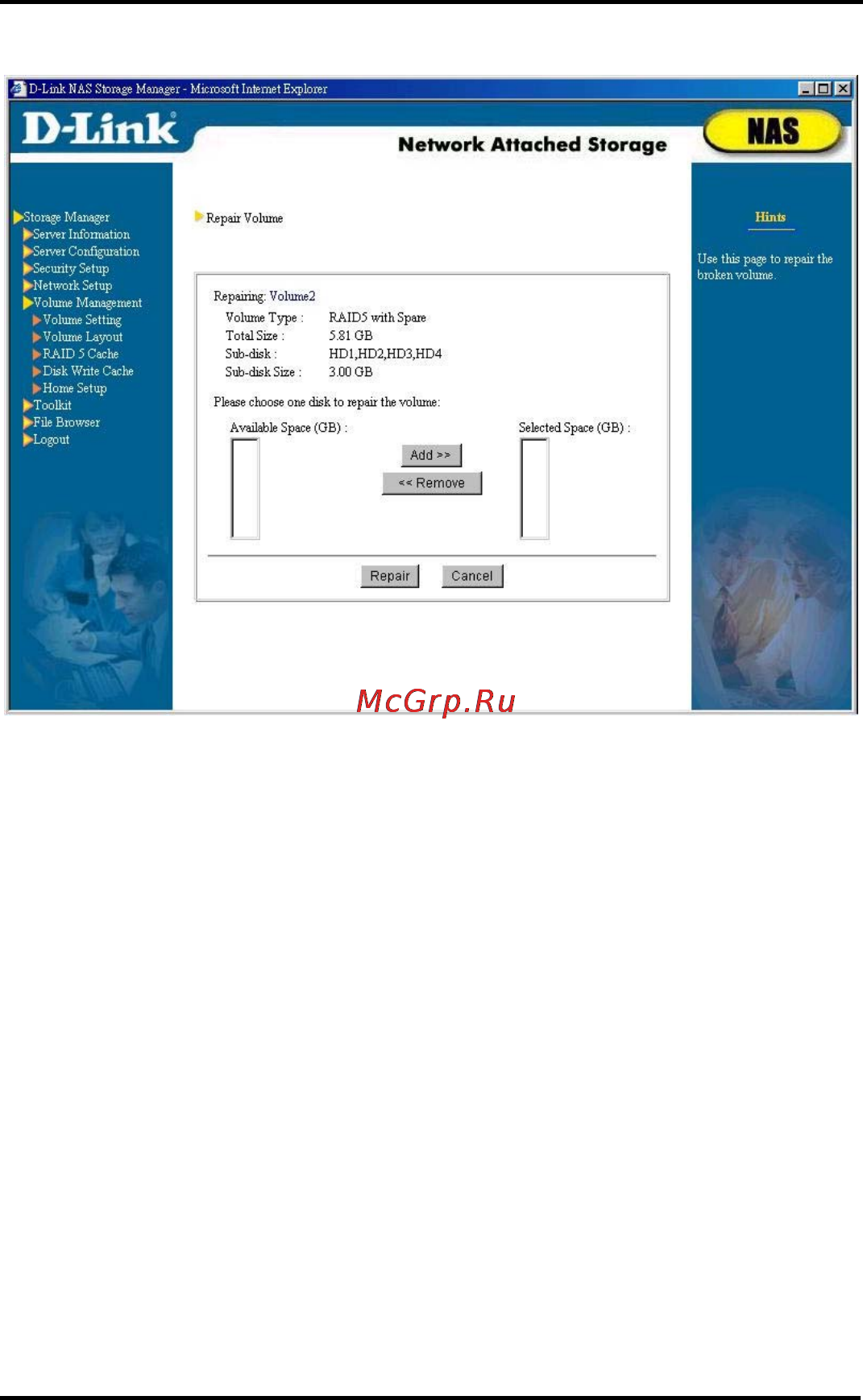

bottom to start the Repair Volume page. The Available Space
column will display all the hard disk space currently available to
repair the damaged disk. Please select the hard disk, for
example, disk 4, and click Add. After confirmation, then click
Repair for the system to start data reconstruction from data
stored in the second disk to the fourth disk. When this is
complete, volume2 is composed from disks 1, 3 and 4, each
with 10GB space.
Please note, you cannot select the hard disk in which the
volume is created while repairing volume space. In the
previous example, because volume2 is created from hard disks 1,
