DNS-6040M/DNS-6040 User’s Manual

2 and 3, thus repair of this volume can only be performed with

disk other than these 3 hard disks.

Volume Layout

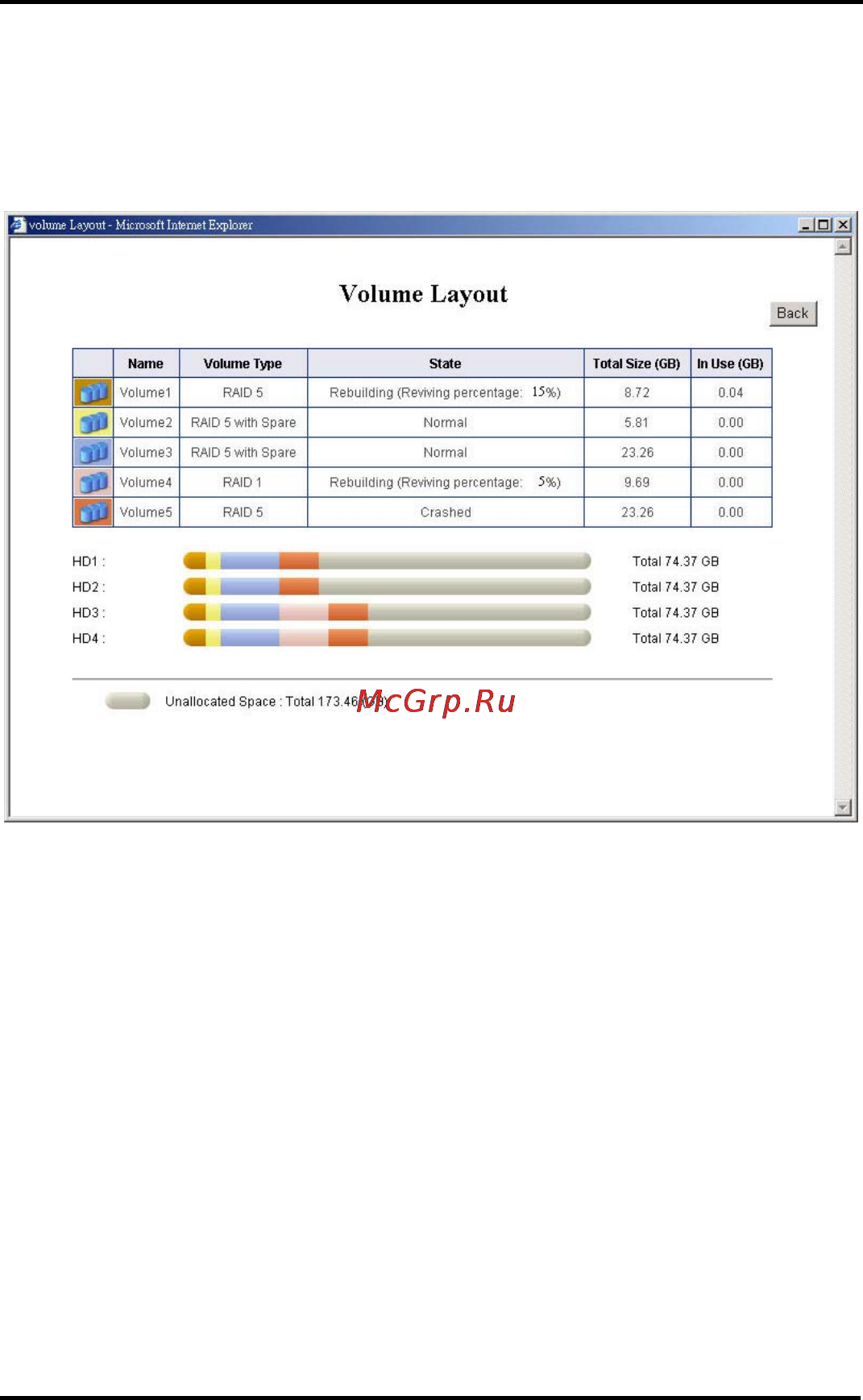

This page shows the status of volume layout in the NAS server.
