DNS-6040M/DNS-6040 User’s Manual

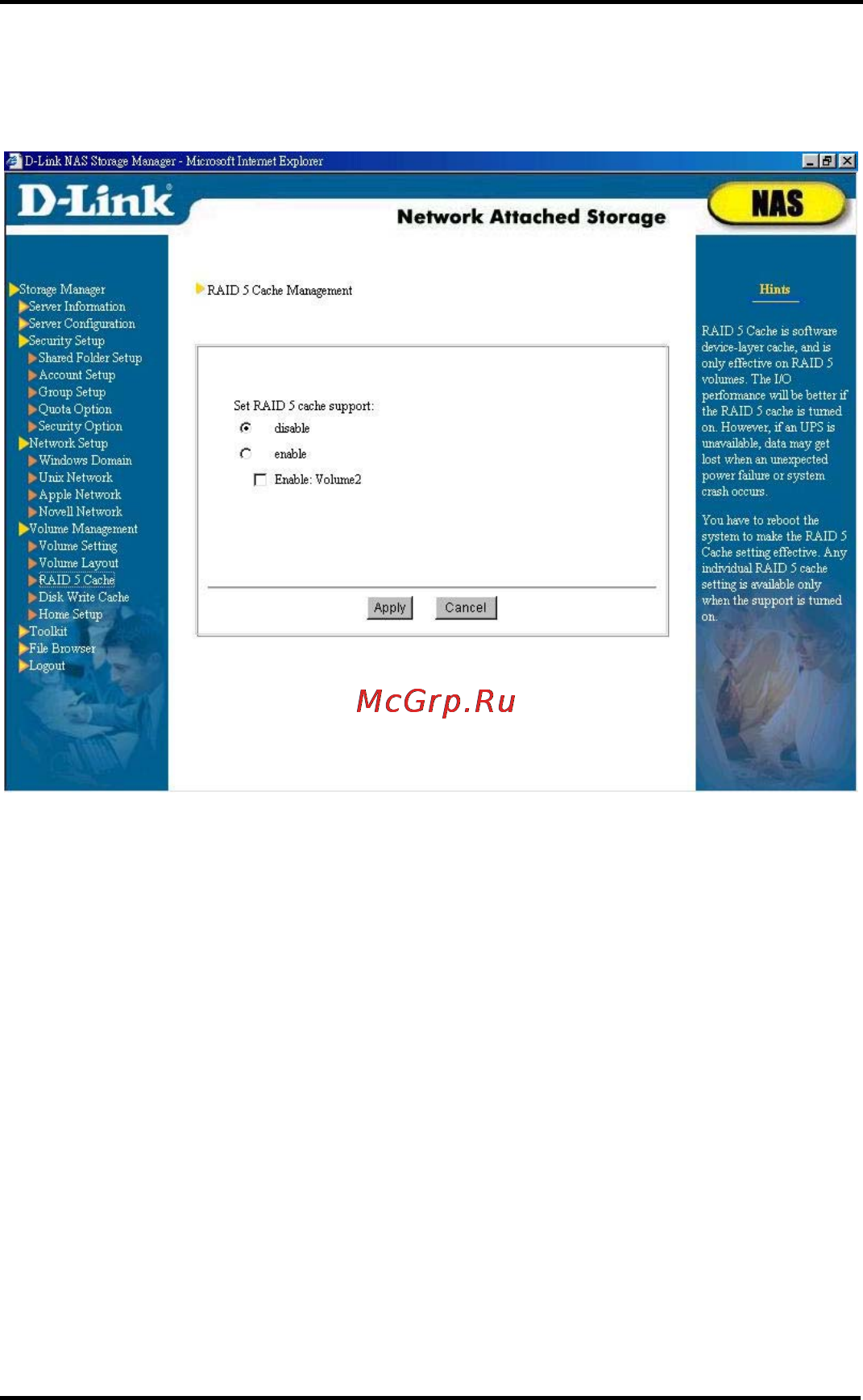

RAID 5 Cache

In supporting RAID 5, save/retrieval activity requires data

in multiple hard disk read/write to compute parity to maintain

data security. To improve read/write performance, the

DNS-6040 Series

supports RAID 5 device-layer cache and data

can be stored in memory temporarily thus is much faster than

hard disk read/write activity. However, this function requires

battery-backup memory (SDRM or NVRAM) or UPS to be

effective for any unanticipated power failure that may result in

data loss.

The system administrator has to reboot the system to make

the RAID 5 Cache setting effective, and it will be applied only

to the selected volume(s).
