DNS-6040M/DNS-6040 User’s Manual

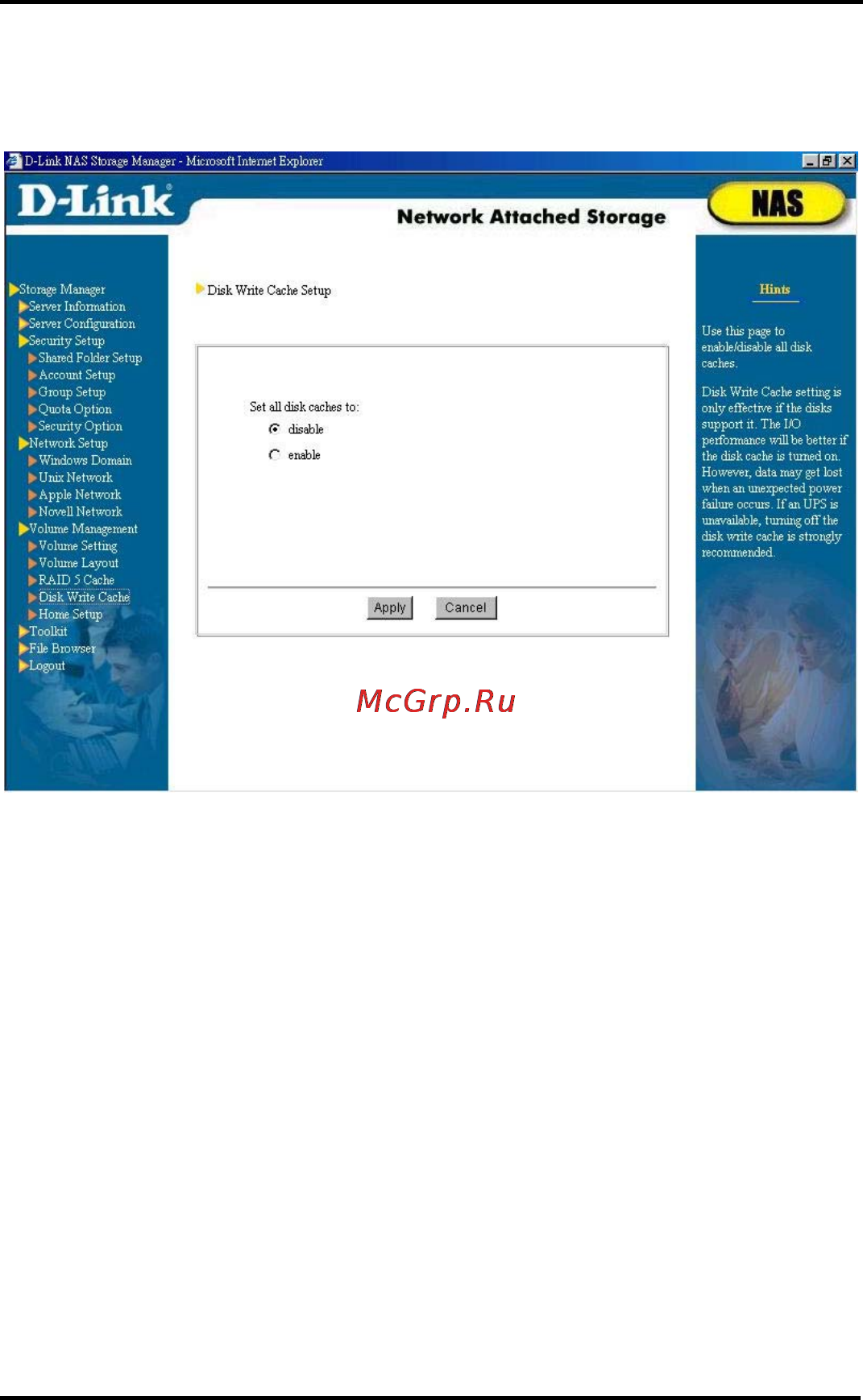

Disk Write Cache

System administrator can turn on or off all the hard disk

write cache here.

This setup will take effect only if the server hard disk

supports cache memory. If the hard disk write cache is turned on,

the system read/write performance will improve, but it may

result in data loss if any unanticipated power failure occurs. If

the system utilizes UPS, then we suggest that you turn on this

selection.
