DNS-6040M/DNS-6040 User’s Manual
80

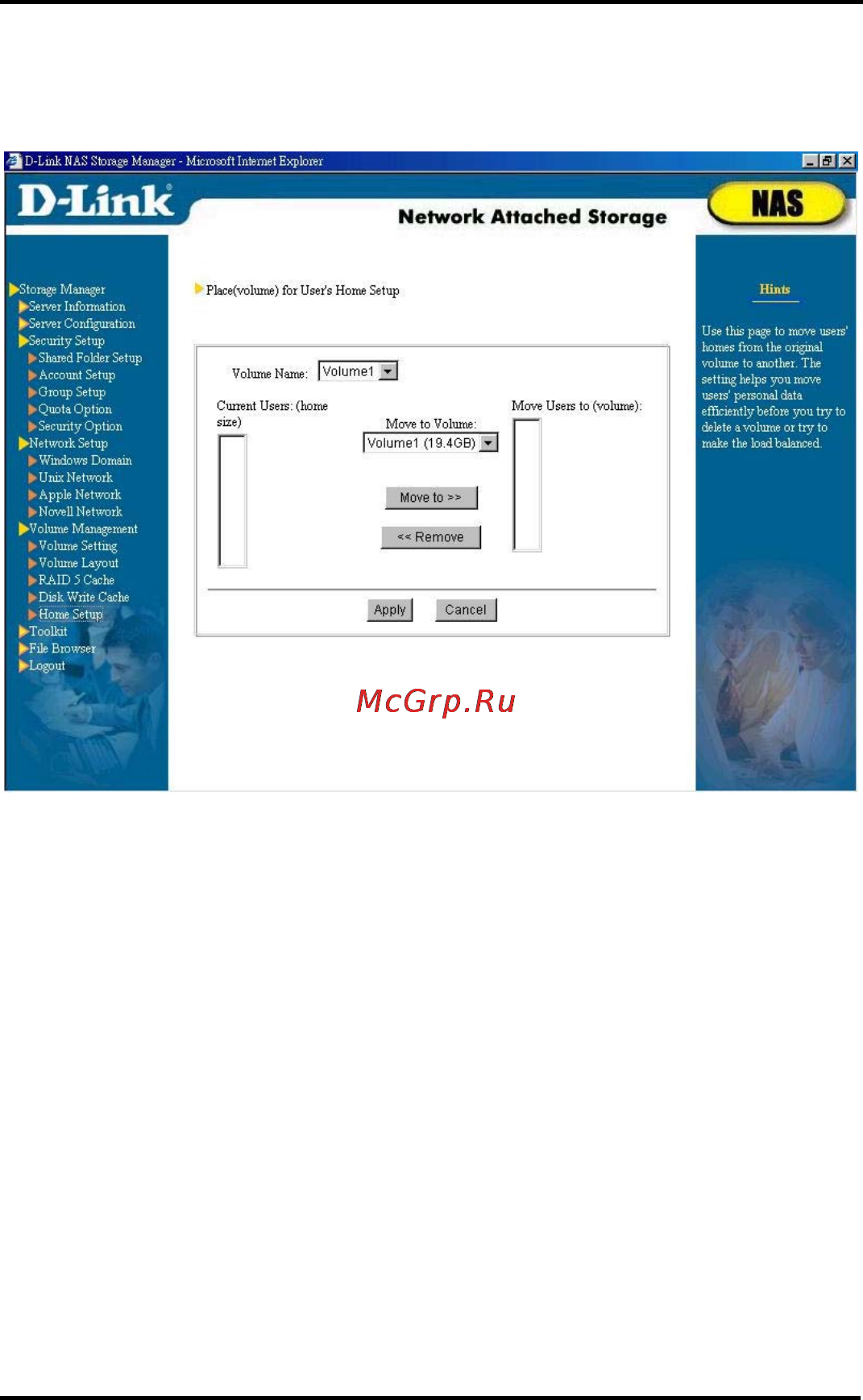

Home Setup
When adding a new account into the Users group, the system
will automatically create a home folder for this account.
System administrator must specify the volume to store the home
folder. But it is possible to save many accounts into certain
volume causing the volume to carry heavy load or have
inadequate space. This Home Setup page enables system
administrator to easily manage user home folders.
After selecting a volume in Volume Name, the system will
display accounts’ home folders in the selected volume in the
Current User (home size) column. Select accounts that require
moving of home folders, select destination in Move to Volume
and click Move to. After confirmation then click Apply.
Please note, if the user account is accessing its home folder, the
file access will be interrupted until home folder move is
complete.
