DNS-6040M/DNS-6040 User’s Manual
85
UPS Management
The DNS-6040 Series currently supports only APC Smart
Series UPS, both via serial connection or SNMP.
Control UPS by serial port
Connect the NAS server’s power cord to the UPS and the
APC RS-232 cable (part number 940-0024C or 940-0020B) to

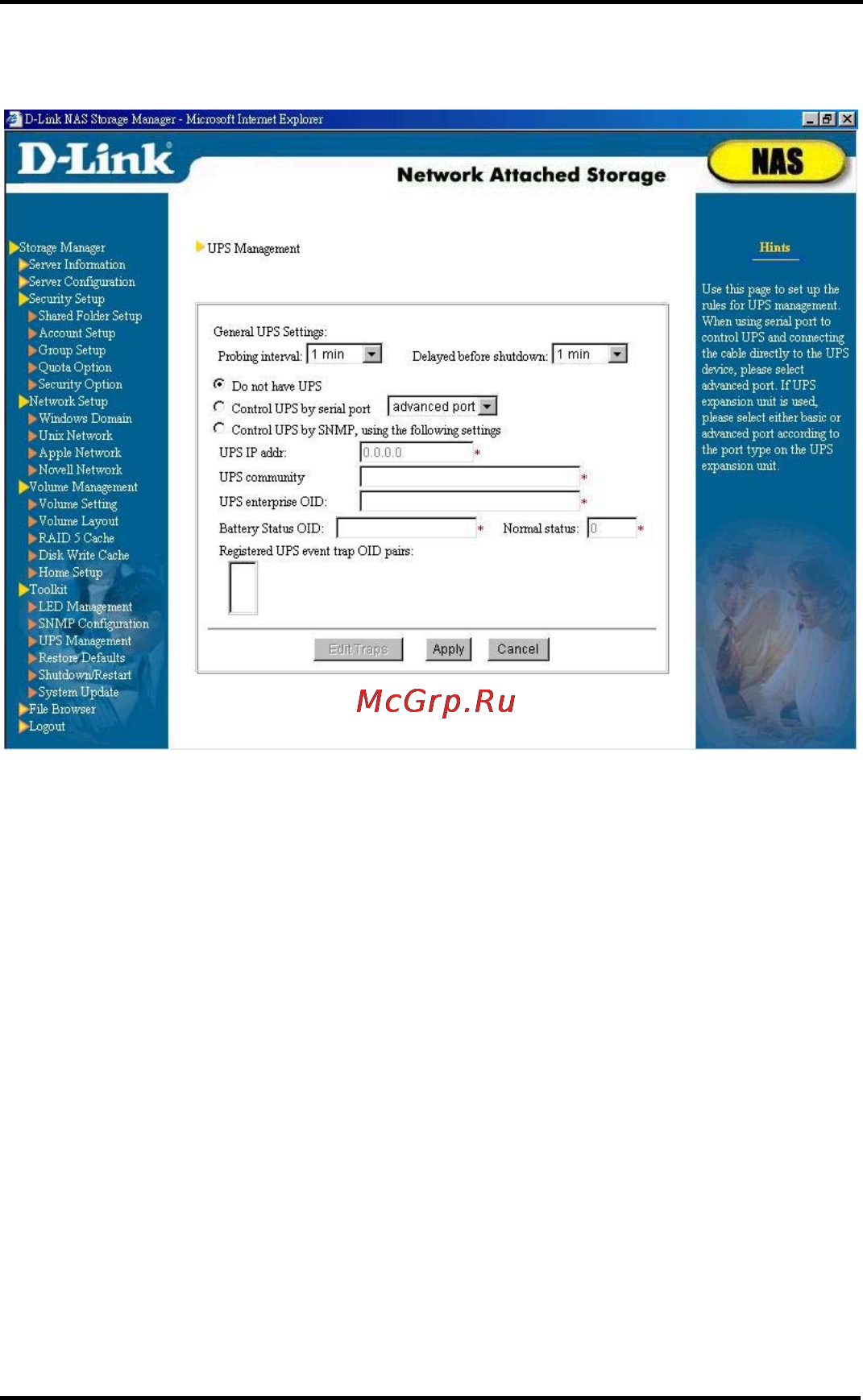

the COM1 port of the NAS server. In Storage Manager, go to
Toolkit
UPS Management, and select Control UPS by serial
port, then select the time for Probing interval and Delayed
before shutdown. The system will use the time interval set for
Probing interval to check the status of the UPS. If an AC power
failure or a low battery warning occurs, the system will wait for
the time entered under Delayed before shutdown before shutting
down, unless the problem is remedied during that time.
Control UPS by SNMP
Connect the NAS server’s power cord to the UPS and the
