Chapter4 Router Configuration
3-20
The address lease time of 10.1.1.0/24 network segment is 12 hours. DNS Server
IP address is 10.1.1.200 and egress network gateway address is 10.1.1.1.
The address lease time of 10.1.2.0/24 network segment is 24 hours. DNS Server
IP address is 10.1.2.200 and egress network gateway is 10.1.2.1.

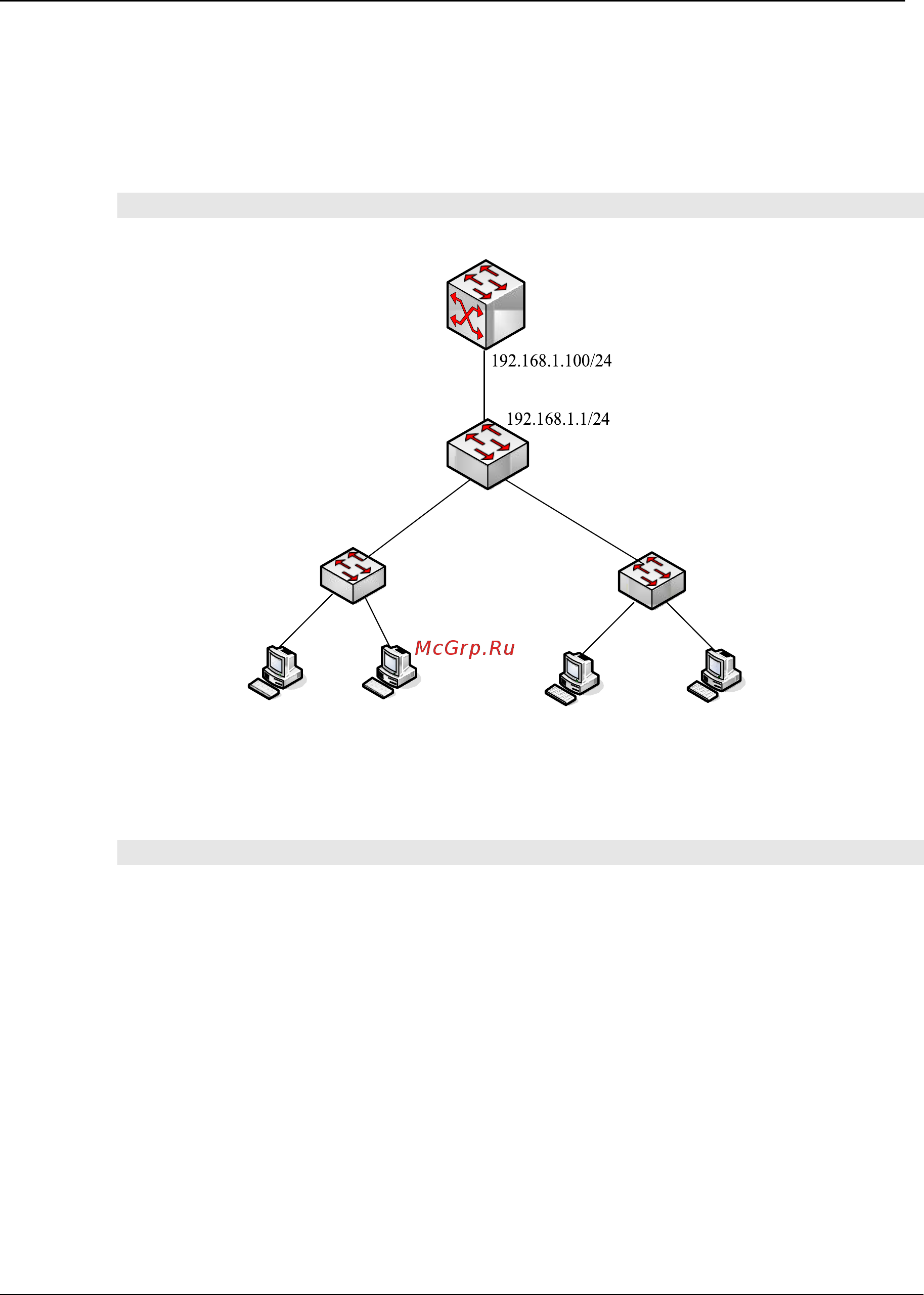

Network Topology
Client
Client
group
1
Client
group
2
Client
Figure DHCP Configuration Topology
Configuration Step
1. Configure DHCP Server.
//Configure VLAN-interface100 IP address of DHCP Server.
Switch#configure
Switch(config)#dhcp enable
Switch(config)#interface vlan 100
Switch(config-vlan-100)#ip address 192.168.1.100/24
Switch(config-vlan-100)#ip dhcp server
//Configure address pool1: address pool range, lease time and designate DNS server.
Switch(config)#dhcp pool 1
Switch(config-dhcp-pool-1)#network range 10.1.1.2 10.1.1.100 mask 255.255.255.0
Switch(config-dhcp-pool-1)#gateway 10.1.1.1
DHCP Server
Vlan100
Vlan100
DHCP Relay
Vlan 10
10.1.1.1/24
Vlan20
10.1.2.1/24
