Qtech QSW-2870 [29/230] From the pop up dialog input the passphrase that has been defined

Chapter1 Basic Configuration

1-18

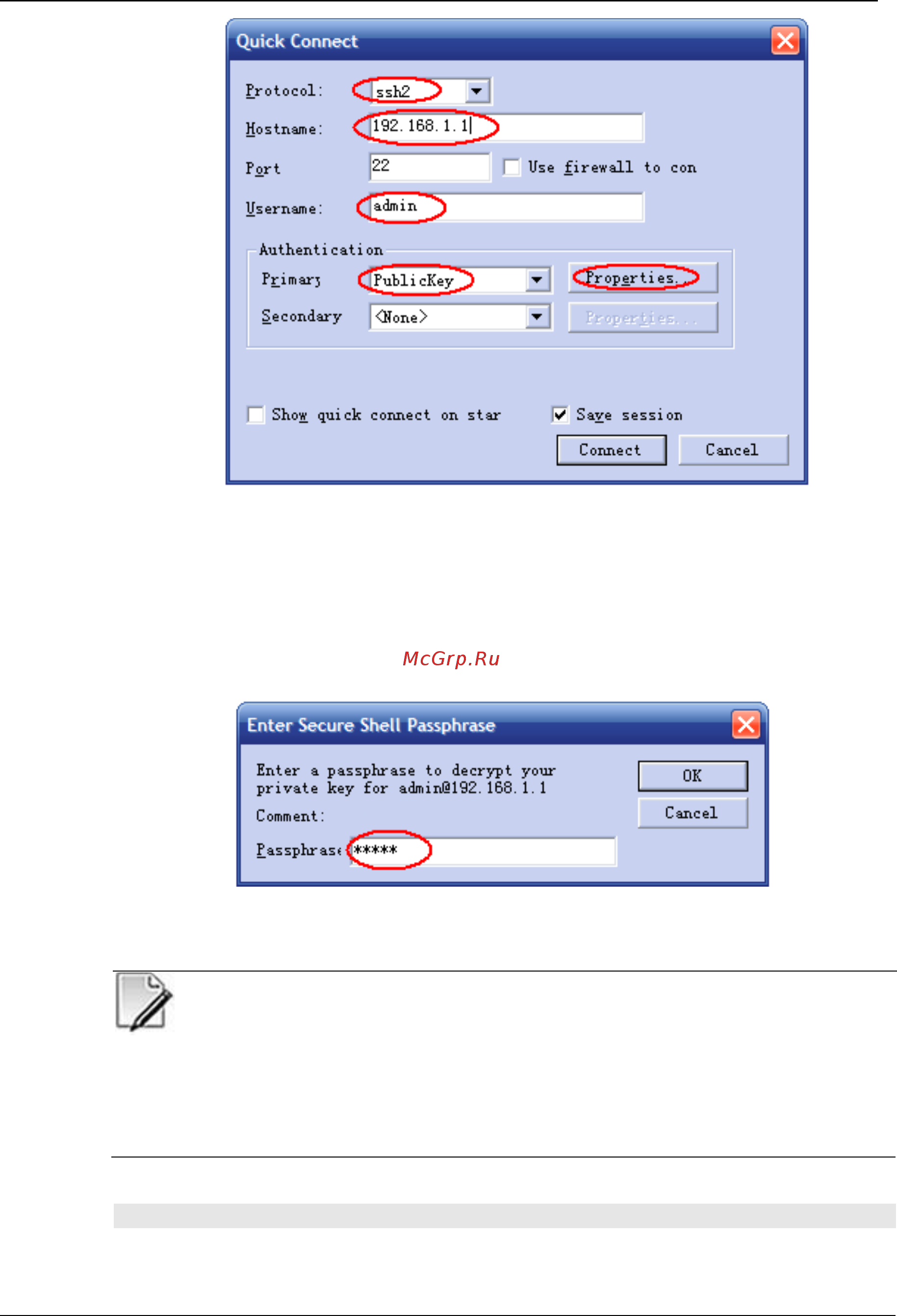

Figure SSH Login Parameters Input (1)

12. From the pop-up dialog, input the Passphrase that has been defined

during the creation of public key dialog (i.e., value in Step 4), and click

button [OK], referring to Figure SSH Login Parameters Input (2):

Figure SSH Login Parameters Input (2)

The above way of SSH login via public key can be also implemented through command „ssh

keygen/sshd auth/ssh login method‟ in the CLI, referring to <Qtech QSW-2870 Series

Carrier Class Layer-2 Ethernet Switch CLI User Manual>.

Result

Notice:
