Chapter1 Basic Configuration
1-17

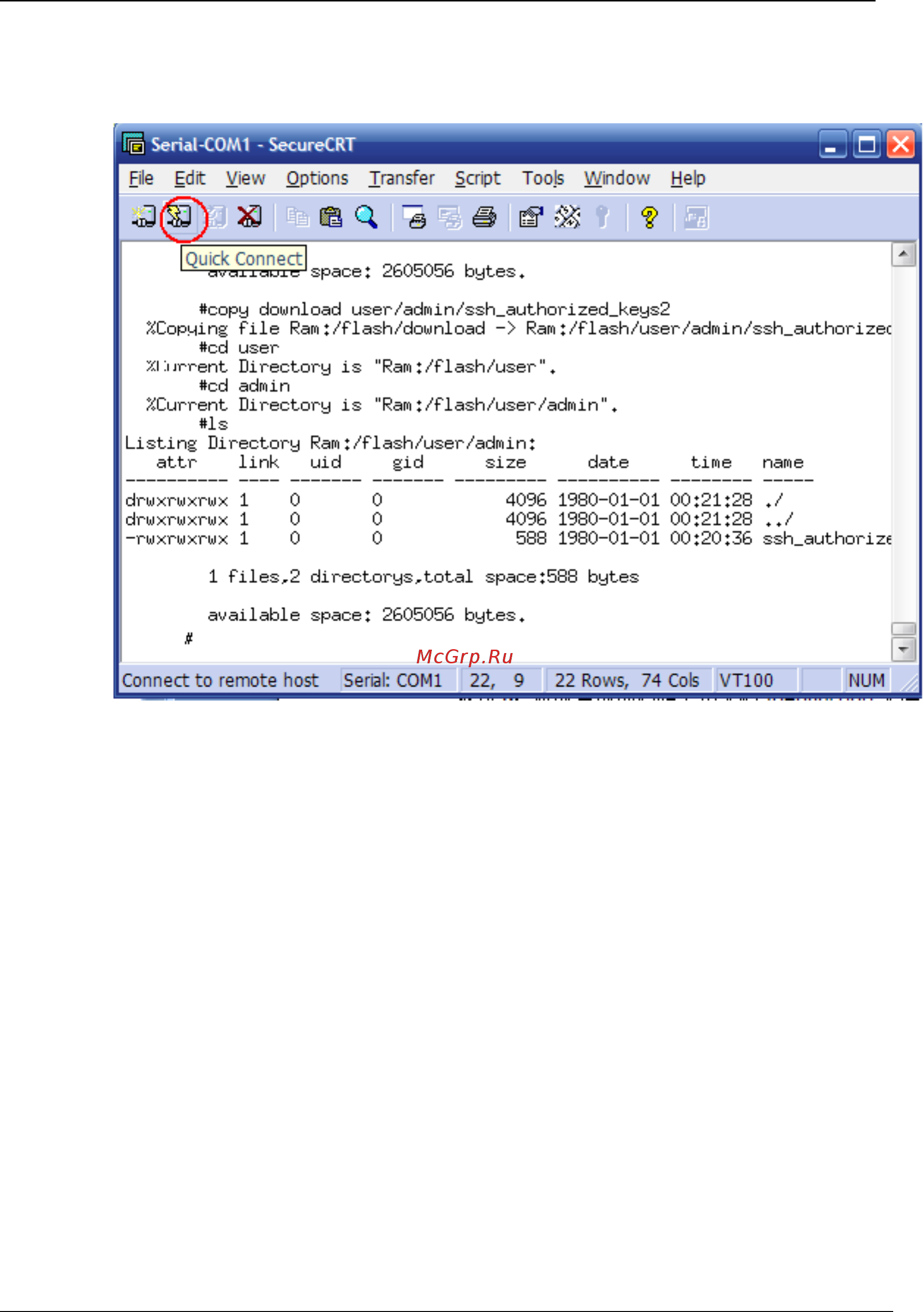

10. Logging device via SSH by operating SSH client software (e.g., Secure
CRT) at PC (or configuration terminal), referring to Figure SSH Login
marked in red circle:
Figure SSH Login
11. In the following dialog, select „SSH2‟ for option „Protocol‟, device inband
IP address for option „Hostname‟, user with public key document copied
under corresponding category for option „Username‟, and „PublicKey‟ for
column Primary of Authentication, and click button [Propertiers..],
referring to Figure SSH Login Parameters Input (1):
