Chapter7 Security Configuration
6-14
Objective
Step
4. Done.
Appendix List:
Parameter
Description
Value
interface-number
Ethernet interface number
integer with range of
<1-8>/<0-4>/<1-48>
vlan-id
VLAN ID
integer with range of 1-4094
NAME
-
character string
6.2.7 Example
6.2.7.1 Example for Static Layer 2 Multicast
Network Requirement
Switch interface GE1/0/1 connects with the router of the multicast source side.
Interface GE1/0/2 connects with user host. It requires that all hosts in VLAN100 can
receive the multicast data of the IP 225.1.1.1 for long time.
Network Topology

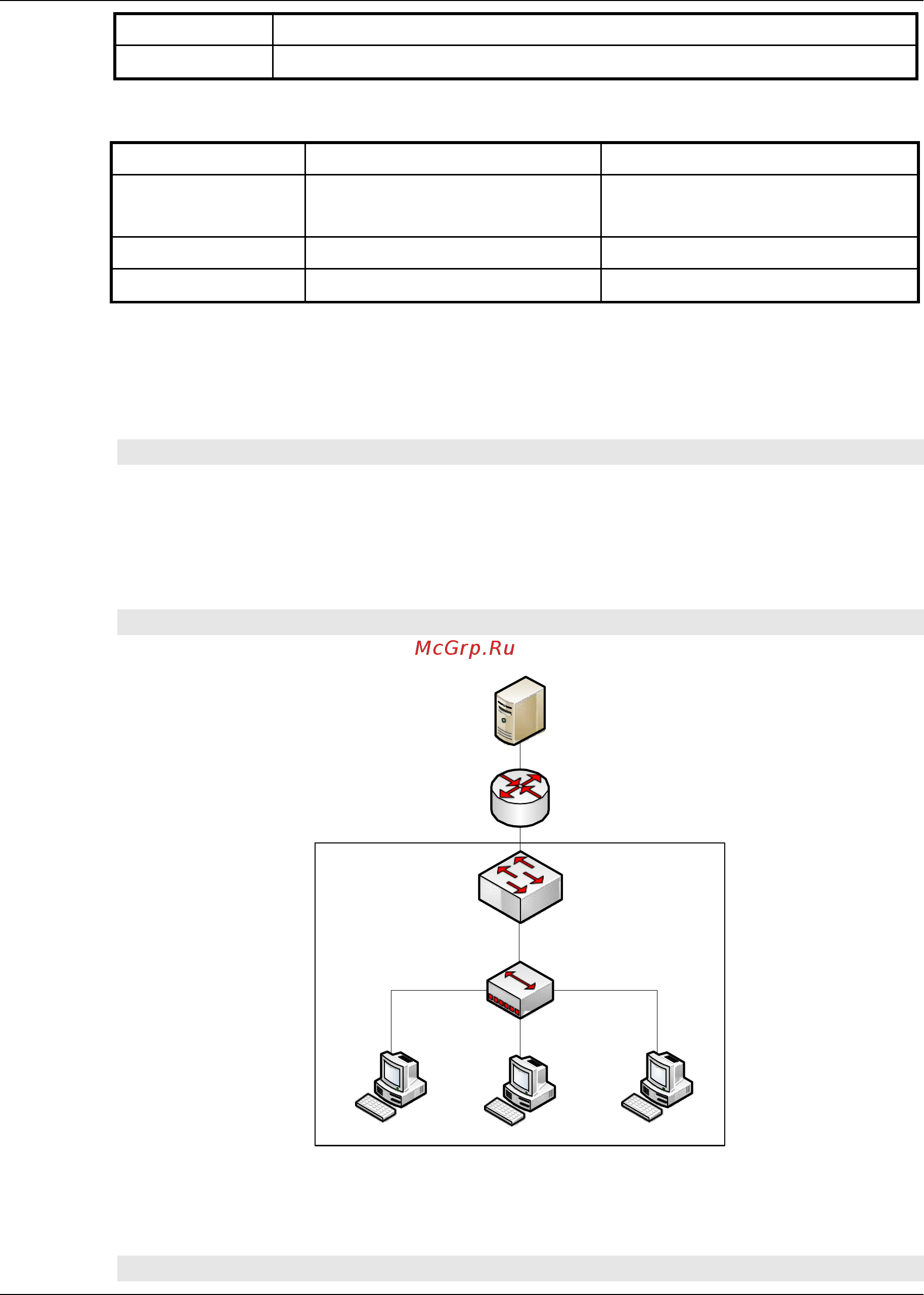

Figure Static Layer 2 Multicast Topology
Configuration Step
VLAN 100
Multicasr Source
