Chapter1 Basic Configuration
1-16
Category, taking the admin user category as the example:

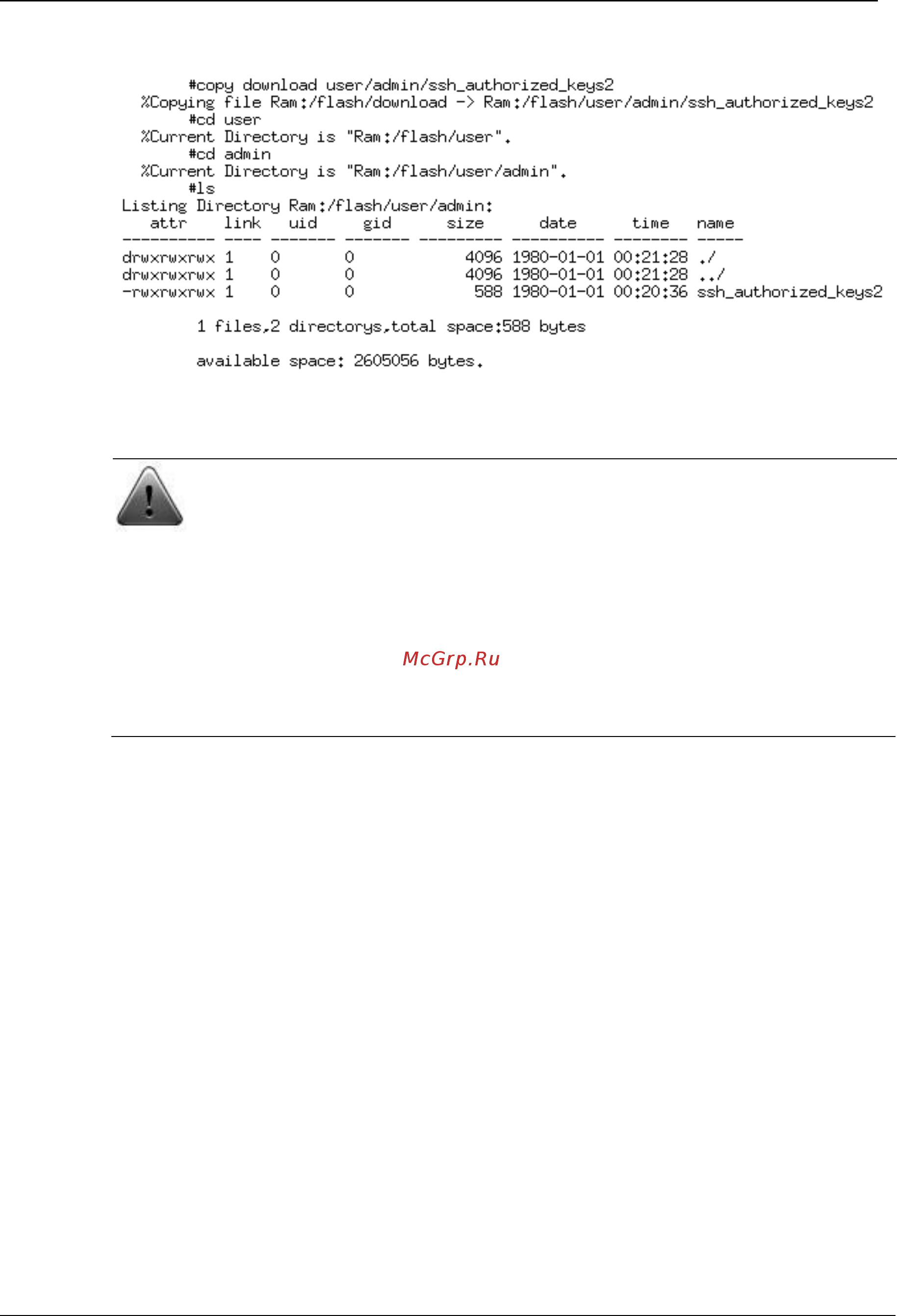

Figure Copy the Initial Public Key to Designated User Category
The file name of the public key document being stored in the device must be „sh_authorized_key2‟.
The admin user as default deployment usually exists in most of the telecommunication devices.
Besides, user is also allowed to create other user accounts with types of authentication. If the
created public key is copied into other user category, then the username and password (referring to
step 11 in this section) must be input accordingly when logging via SSH.
Notice:
