Chapter2 Layer 2 Ethernet Configuration
2-12
included in the MAC address table, Switch will add this new MAC address (and the
corresponding forwarding port of this MAC address) into the MAC address table.
For the message which destination MAC address can be found in the MAC address table,
system will use hardware to forward directly. For the message which destination MAC
address cannot be found in the MAC address table, system will forward the message in
broadcast mode. After broadcasting, the message reaches the network device corresponding
to this destination MAC address. The destination network device will respond to this
broadcast message and the responding message includes the MAC address of this device.
Switch adds the new MAC address into the MAC address forwarding table by address
learning. The subsequent messages to the same destination MAC address will be directly
forwarded by using this newly added MAC address item.

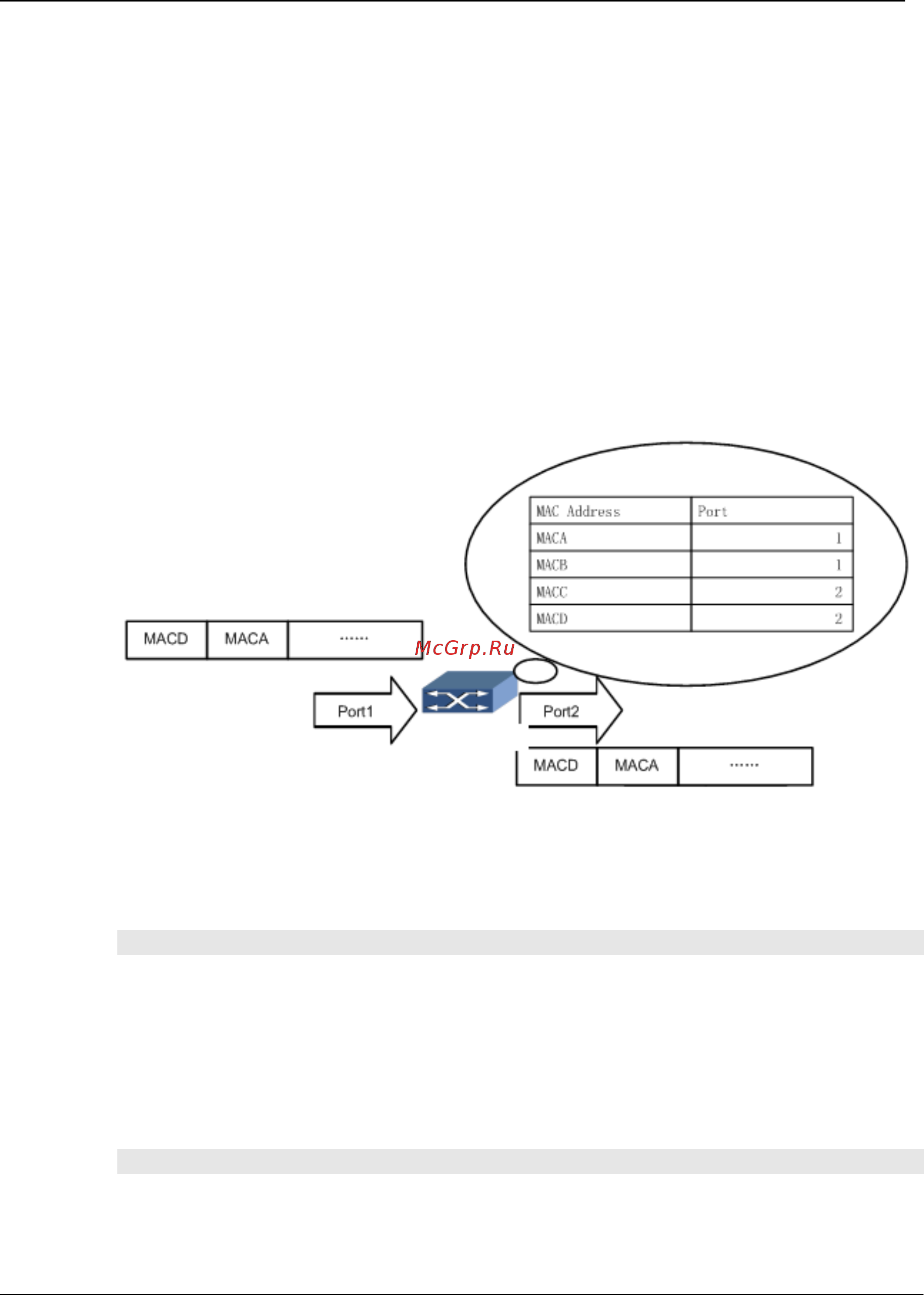

Figure Switch Uses Forwarding Table to Transmit Message
2.3.1 Configure MAC Address Table
Purpose
Administrator can add, modify or delete MAC address item in the MAC address table
according to the real situation.
Use static MAC address to bind user device with interface. This can prevent the illegal
user with fake identity from obtaining data and increase device security.
Procedure
According to the different purposes, execute corresponding step. Please refer to the
following table.
