Chapter5 QoS Configuration
5-3
When using RR (Round Robin) and congestion occurs, the output bandwidth of
each non-empty output queue is the same and the total equals to the interface
bandwidth.
WRR Weighted Average Queue

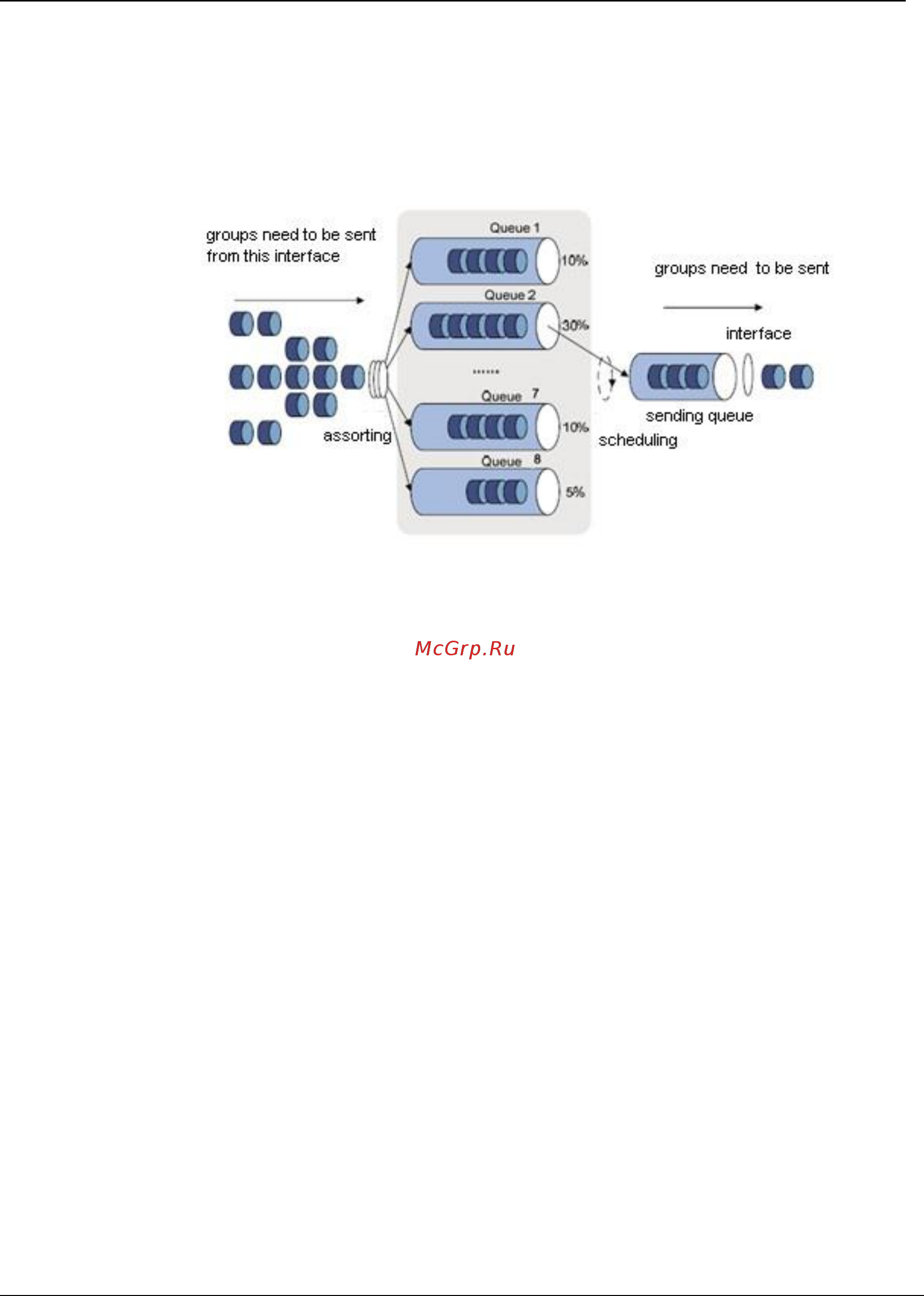

Figure 5-2 WRR Queue Scheduling
WRR (Weighted Round Robin) algorithm is scheduled among ports in turns to
guarantee that every queue obtains some service time. When congestion
occurring, each non-empty output queue sends out flow according to the
bandwidth proportion and its total equals to the available bandwidth of interface.
Advantage1: It guarantees that the lowest priority queue obtains part of
bandwidth at least and avoids the problem that message of low priority queue
may be not transmitted for a long time when using SP scheduling.
Advantage2: Although multiple queue scheduling is round robin conducted, each
queue is not allocated fixed service time slice. If some queue is empty, then
change to the next scheduling queue immediately. In this way, bandwidth
resource can be fully utilized.
DRR Scheduling Queue
The scheduling principle of DRR (Deficit Round Robin) is basically the same as
WRR scheduling.
The difference between DRR and WRR is as the following.
