Chapter7 Security Configuration
6-17

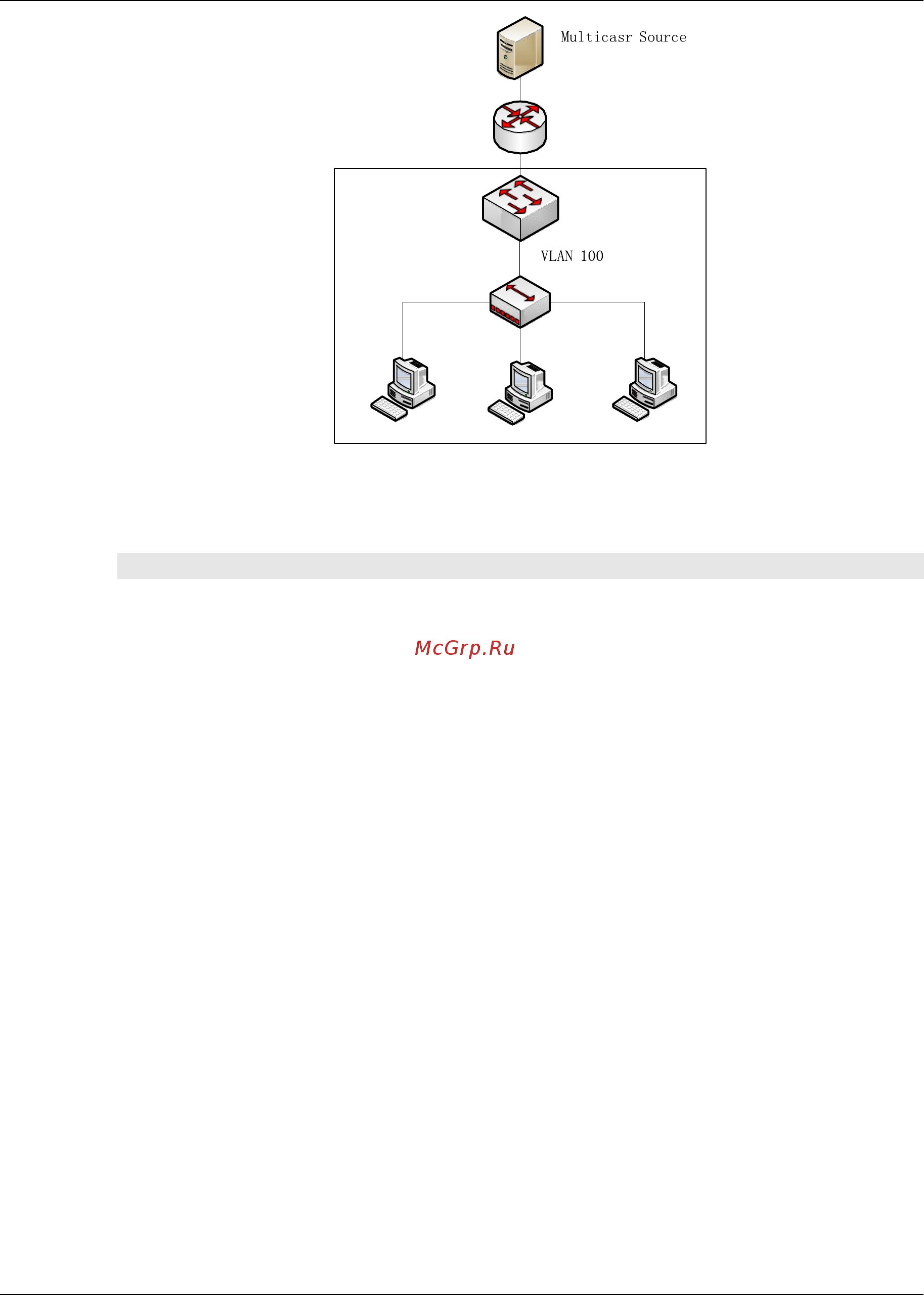

Figure IGMP Snooping Configuration Topology
Configuration Step
1. Globally enable IGMP Snooping function.
Switch#configure
Switch(config)#igmp-snooping start
Switch(config)#
2. Create VLAN and corresponding multicast VLAN and configure interface to
join in the VLAN.
Switch(config)#vlan 100
Switch(vlan-100)#quit
Switch(config)#interface fastethernet 1/0/1
Switch(config-ge1/0/1)#port hybrid vlan 100 tagged
Switch(config-ge1/0/1)#quit
Switch(config)#interface fastethernet 1/0/2
Switch(config-ge1/0/2)#port hybrid vlan 100 tagged
Switch(config-ge1/0/2)#quit
Switch(config)# igmp-snooping mvlan 100
Switch(config-igmpsnoop-mvlan100)#quit
Switch(config)#
3. Enable IGMP Snooping function on interface.
Switch(config)#interface fastethernet 1/0/1
