Chapter7 Security Configuration
6-24
GE1/0/2 can view the 225.1.1.1 channel, preview 225.1.1.2 channel and deny to view
225.1.1.3 channel. It requires that the user of GE1/0/3 can view 225.1.1.2 channel,
preview 225.1.1.3 channel and deny viewing 225.1.1.1 channel.

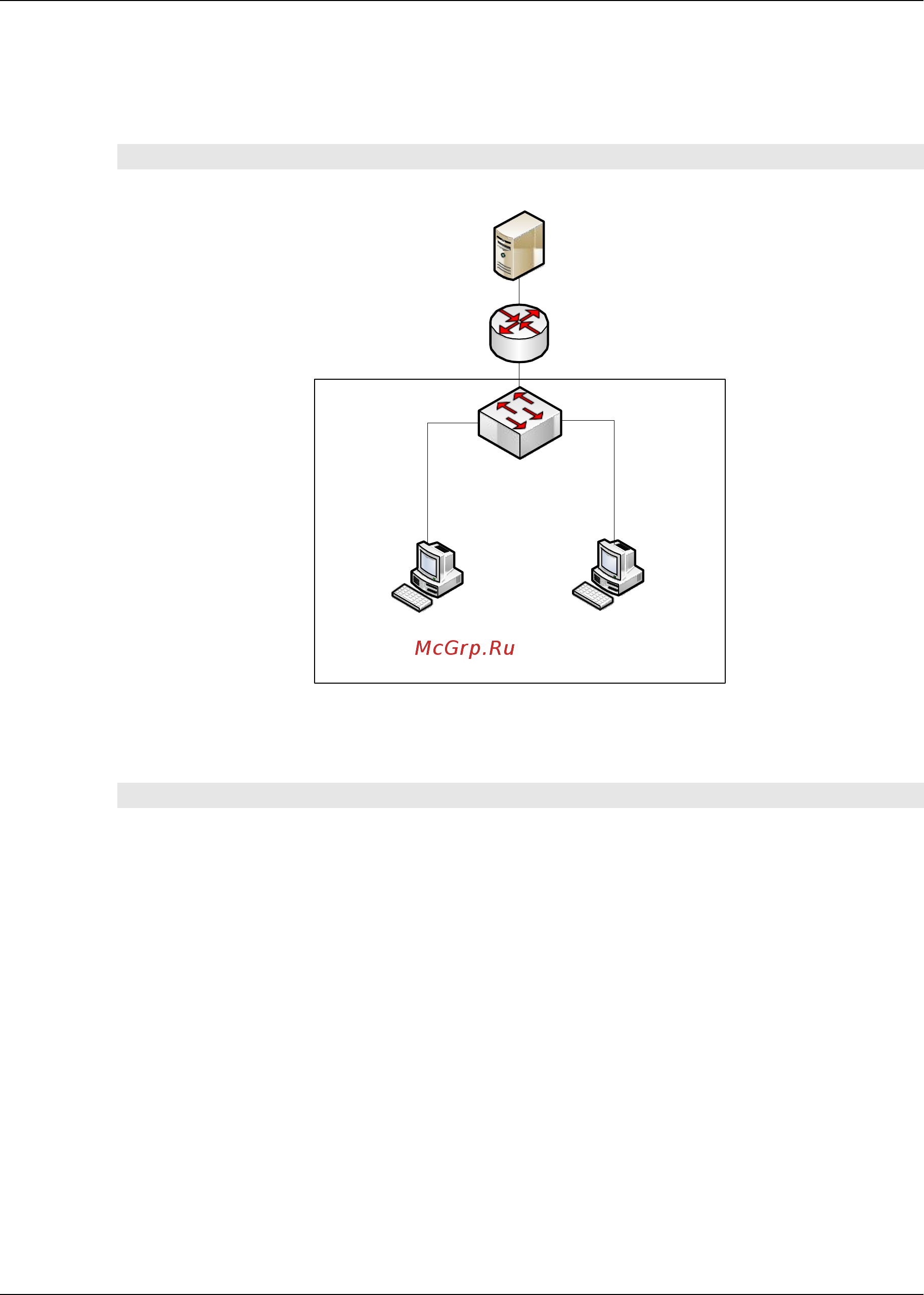

Network Topology
Figure Controllable Multicast Topology
Configuration Step
1. Globally enable IGMP Snooping function.
Switch#configure
Switch(config)# igmp-snooping start;
Switch(config)#
2. Create VLAN and corresponding multicast VLAN and configure interface to
join in the VLAN.
Switch(config)#vlan 100
Switch(vlan-100)#quit
Switch(config)#interface fastethernet 1/0/1
Switch(config-ge1/0/1)#port hybrid vlan 100 tagged
Switch(config-ge1/0/1)#quit
Switch(config)#interface fastethernet 1/0/2
Switch(config-ge1/0/2)#port hybrid vlan 100 tagged
VLAN 100
Multicasr Source
