Chapter7 Security Configuration
7-23
7.2.8.2 Configure Layer3 ACL
Network Requirements
Every department of the corporate network are connected with each other by Switch.
Require to configure IPv4 ACL to deny „Research & Development Dept.‟ to access
salary query server (with IP address of 10.164.9.9) at time of 8:30 to 17:30. But the
president office can access salary query server at any time without limitation.

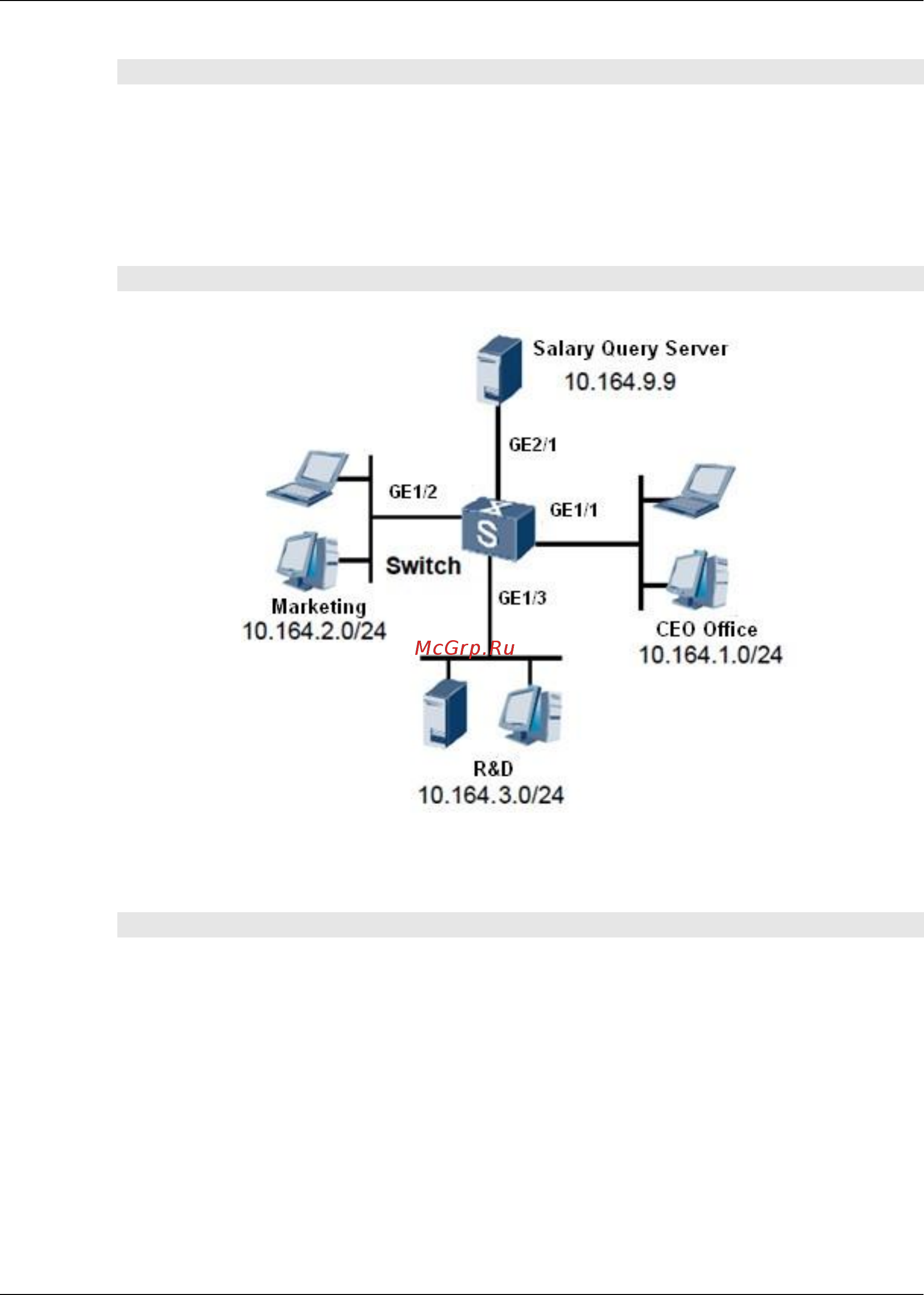

Network Diagram
Figure Layer3 ACL Topology
Configuration Steps
1. Configure time-range.
Switch#configure
Switch(config)#time-range list 1
Switch(config-timerange1)#time-range 1 everyweekday 8:30:00 to 17:30:00
Switch(config-timerange1)#quit
2. Configure ACL to allow president office to access salary query server.
Switch(config)# filter-list 1001
Switch(configure-filter-ipv4-1001)#filter 1 ip 10.164.1.0/24 10.164.9.9/32
