Chapter7 Security Configuration
7-27

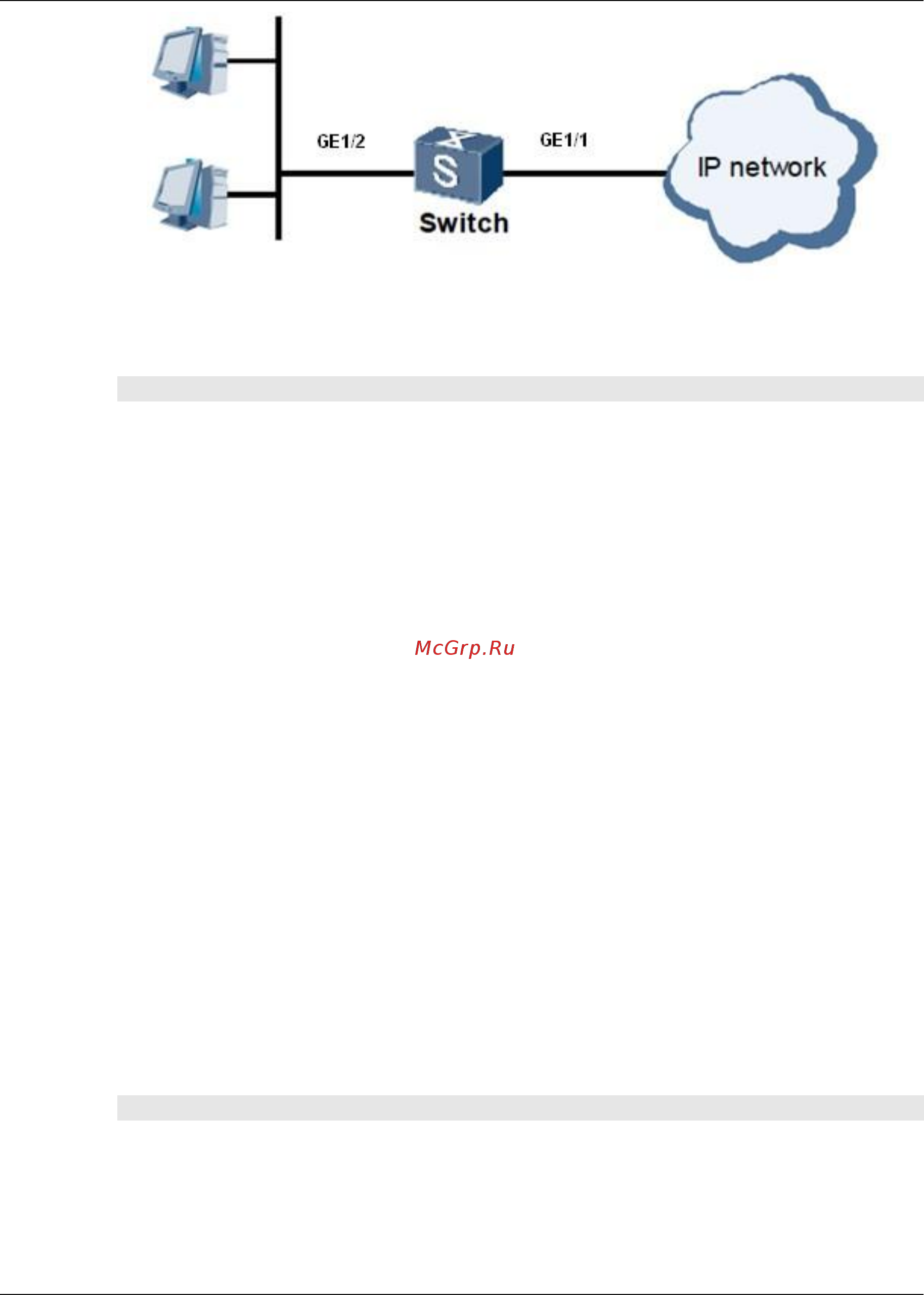

Figure Rate Limitation Template Topology
Configuration Steps
1. Configure rate limitation template.
Switch#configure
Switch(config)#meter 1 cir 64 cbs 10000 pbs 10000 pir 64
2. Create ACL.
Switch(config)#filter-list 1
Switch(configure-filter-l2-1)#
3. Configure ACL rule.
Switch(configure-filter-l2-1)#filter 1 mac 00:01:02:03:04:05/48 any
4. Bind rate limitation template with ACL.
Switch(configure-filter-l2-1)#filter 1 meter 1
5. Configure ACL action.
Switch(configure-filter-l2-1)#filter 1 outaction yellow remark-dscp af11
6. Apply ACL to interface.
Switch(configure-filter-l2-1)#quit
Switch(config)#interface fastethernet 1/0/2
Switch(config-ge1/0/2)#filter-list in 1
7.2.8.6 Configure Counting Template
Network Requirements
Switch is used as gateway, connecting with user PC. Require to configure ACL to
count message number with source IP address to be 10.1.1.1/24 network segment
received by SwitchA of interface GE1/0/2.
