D-EOMHP00706-14EN - 14/78
3 Control system
3.1 Overview
The control system consists of a unit controller (UC) equipped with a set of extension modules that
implement additional features. I/O extension modules communicate via an internal peripheral bus with
the UC. ACS I/F board, which controls compressor variable frequency drives, communicate via a Modbus
with UC. The Microtech III continuously manages the information received from the various pressure and
temperature probes installed on the compressors and communicated to the unit. The UC incorporates a
program that controls the unit.

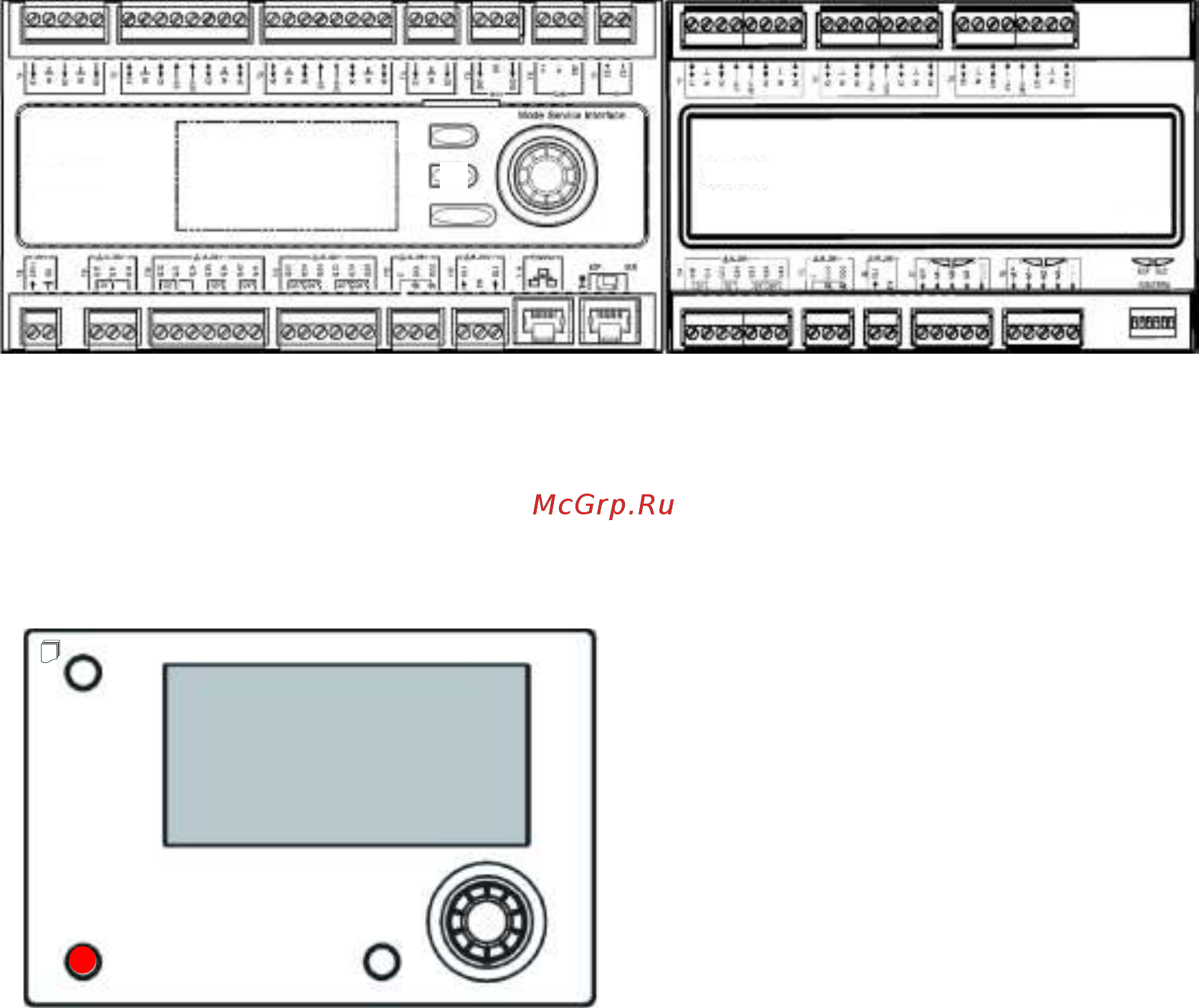

The standard HMI consists of an inbuilt display (A) with 3 buttons (B) and a push’n’roll control (C) to
navigate interface screens and modify settings. It is integrated in the UC board and gives access to a full
array of control parameters.
All boards are supplied from a common 24 Vac supply. Extension boards can be directly powered by the
Unit Controller.
CAUTION: Maintain the correct polarity when connecting the power supply to the boards, otherwise
the peripheral bus communication will not operate and the boards may be damaged.
As an option an external Remote HMI could be connected on the UC. The Remote HMI offers the same
features than the inbuilt plus the alarm indication done with a light emitting diode located below the bell
button.
The Remote HMI can be extended up to 700m using the process bus connection available on the UC. With
a daisy-chain connection as below, a single HMI can be connected to up to 8 units. Refer to the specific
HMI manual for details.
A
B
C
MicroTech® III
