Daikin EWAQ340GZXR [37/78] No reset

D-EOMHP00706-14EN - 37/78

6.1.2.1 No reset

The Active Leaving Water variable is set equal to the current LWT set point.

6.1.2.2 Return reset

The Active Leaving Water variable is adjusted by the return water temperature.

--- For cooling ---

--- For heating ---

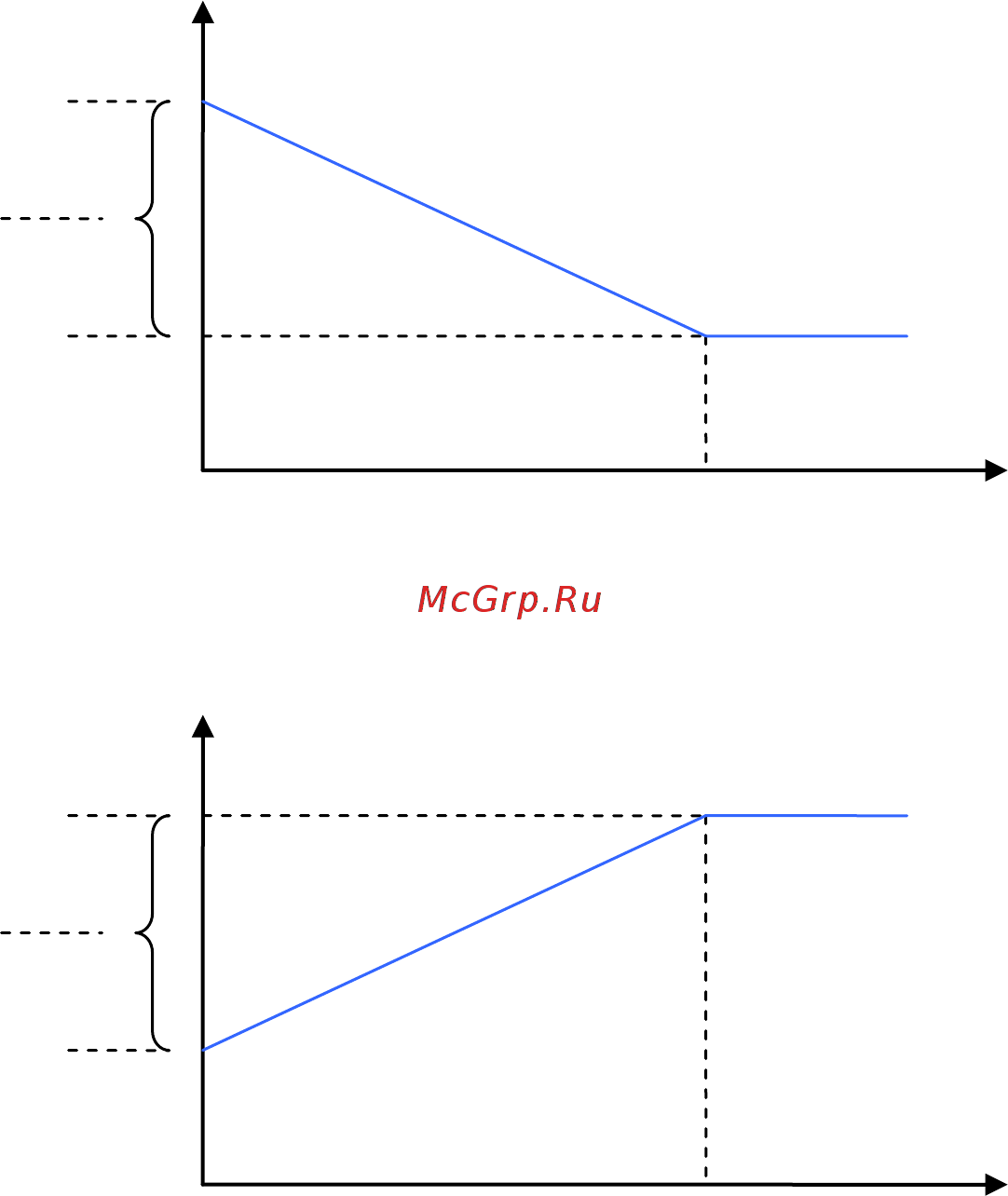

6.1.2.3 4-20mA Reset

The Active Leaving Water variable is adjusted by the 4 to 20mA reset analog input.

--- For cooling ---

Active LWT target

LWT set point

- Max Reset

LWT set point

Max Reset

Start Reset

Delta T

Evap Delta T

Active LWT target

LWT set point

+ Max Reset

LWT set point

Max Reset

Start Reset

Delta T

Evap Delta T
