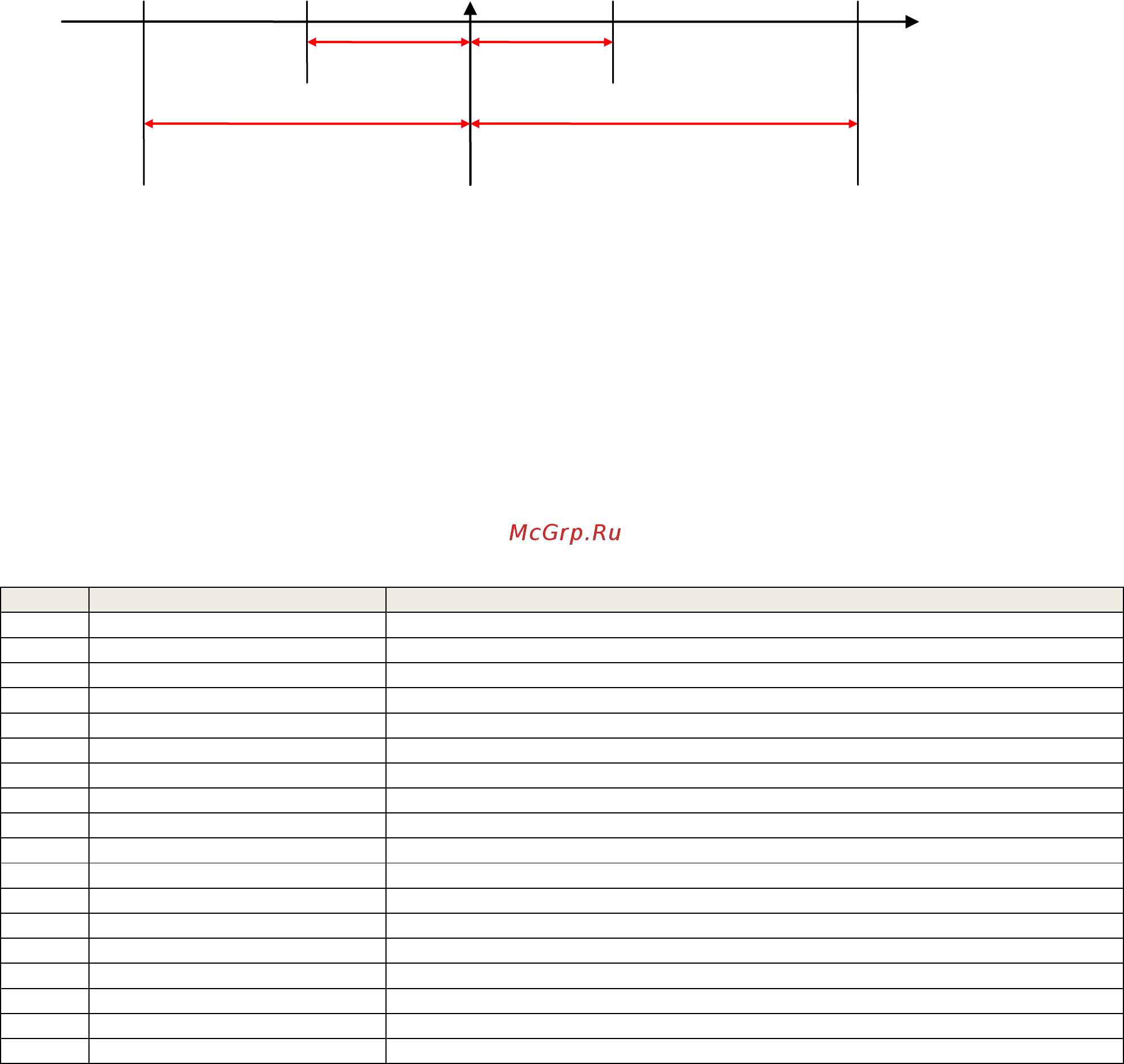

D-EOMHP00706-14EN - 41/78
6.3.2.3 Start up, Stage up, Stage down, Shut down delta T
The purpose of this logic is to avoid excessive circuit start and stop when the cooling or heating capacity
required is very low. Start up delta T and the Shut down delta T shall use the diagrammed below.
The first circuit on the unit should be started when;
LWT error > Start up delta T
An additional circuit should be started when;
LWT error > Stage up delta T
When multiple circuits are running, one should shut down if;
LWT error < Stage down delta T
All running circuits should shut down when;
LWT error < Shut down delta T
6.3.3 Circuit Status
The displayed unit status should be determined by the conditions in the following table.
Enum
Circuit status
Conditions
0
OFF Ready
Circuit ready to start when needed
1
OFF Cycle timer
Circuit is Off, and cannot start due to active cycle timers
2
OFF BAS Disable
BAS Circuit Mode set point is not set to Auto when the control source is remote
3
OFF Keypad Disable
Circuit Mode set point = Disable
4
OFF Circuit Switch
Circuit switch is open
5
OFF Alarm
Circuit alarm is active
6
OFF Test Mode
In Test mode
7
RUN Preopen
In preopen state
8
RUN Pumpdown
In Pumpdown state
9
RUN Starting
In Auto and running normally
10
RUN Normal
In Auto and running normally
11
RUN Defrost
In Reverse cycle Defrost
12
RUN Off cycle Defrost
In Off cycle Defrost
13
RUN Disch Port Temp High
Unload or inhibit load due to high disch port temp
14
RUN Evap Press Low
Unload or inhibit load due to low evaporator pressure
15
RUN Cond Press High
Unload or inhibit load due to high condenser pressure
16
RUN Press Ratio High
Unload or inhibit load due to high press ratio.
17
RUN Comp Vfd Amps High
Unload or inhibit load due to high compressor vfd amperes
LWT error
Stage up
delta T
Stage down
delta T
LWT active set point
Shut down delta T
Start up delta T
