D-EOMHP00706-14EN - 70/78
8.12.3.1 LWT active set point
LWT active set point of master unit shall be taken as chiller network LWT active set point. LWT active set
point of slaves shall be overwritten by master one.
This means LWT target resetting of master is also used as chiller network target resetting.
There is one note for calculating return reset. It requires averaged LWT of running units to calculate
return reset.
8.12.3.2 Capacity limit
Capacity limit for each unit varies based on chiller network capacity limit set point.
If the set point is set to “Common” the capacity limit to master shall be applied to all units in chiller
network. If it is set to “Each” capacity limit can be set to each unit. Where capacity limits are unit current
limit, 4-20mA demand limit and BAS network limit.
8.12.3.3 Unit start up
This control is same as normal control. However this will be applied to first starter unit only. The other
units in chiller network shall take stage up sequence.
8.12.3.4 Unit stage up
During chiller network control unit stage up and stage down are required for controlling multi units as
one unit. The first starter unit will take normal start up sequence. After that the other units will take unit
stage up sequence instead of startup sequence.
8.12.3.5 Unit stage down
Unit stage down will be taken as an alternative logic of circuit stage down or compressor stage down. So,
if the unit is under chiller network control the circuit stage down and compressor stage down control will
be forbidden.
8.12.3.6 Unit shut down
Unit shut down by switches and LWT error shall be same as normal control. Light load unit shut down
shall be ignored unless more than two units are running under chiller network control.

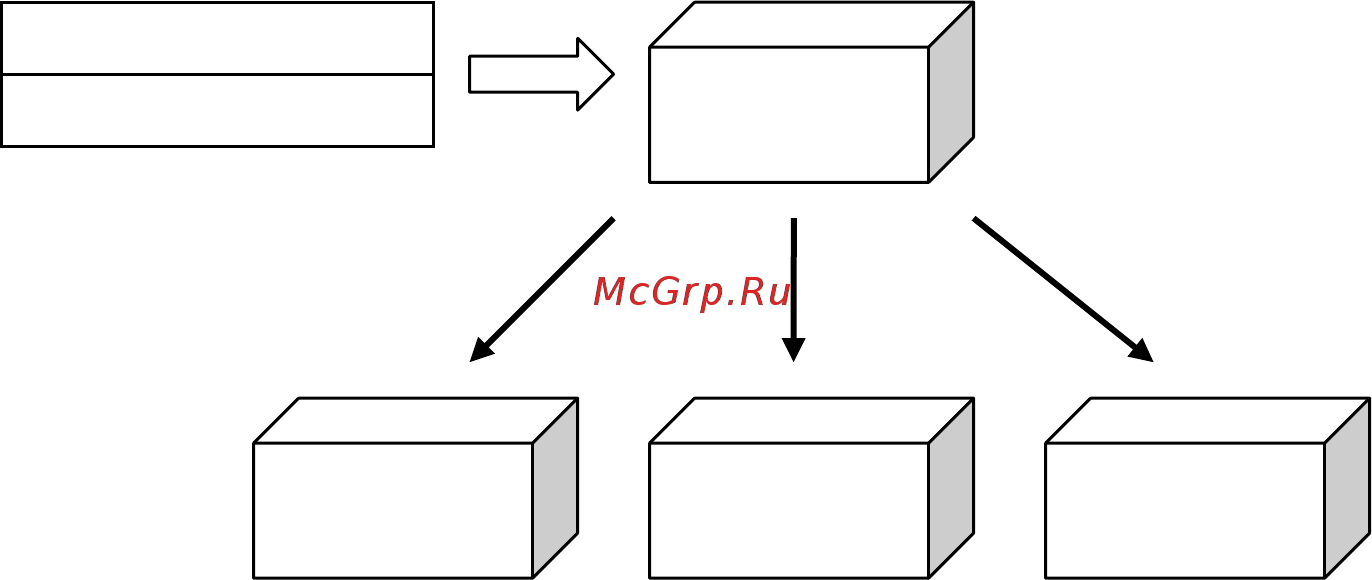

Master
LWT active
set point
Slave1
Slave2
Slave3
Overwrite LWT active set point
of slaves.
LWT set point
LWT target resetting
