D-EOMHP00706-14EN - 61/78
8.3 Unit current limit control
8.3.1 Unit setting
Unit current Limit control should be enabled only when Current limit enable digital input is closed and
Current limit set point is enabled. If this control is enabled ‘Current limit type’, ‘Current at 20mA’ and
‘Current limit’ set points needs to be arranged for each unit.
Current limit
type
Current at
20mA
Current
limit
Description
INV
N/R
Need to set
some value
Unit current will be limited by inverter primary current and fans estimated
current. It doesn’t require an additional current measuring device, such as CT.
CT
(4-20mA)
Need to set
some value
Need to set
some value
Unit current will be limited by an analog input from CT.
This control can be enabled during normal operation without shutdown.
8.3.2 Current limit control
8.3.2.1 Unit current calculation
• If ‘Current limit type’ is set to INV:
See section 4 “Calculations”
• If ‘Current limit type’ is set to CT (4-20mA):
Unit current will be calculated based on the 4-20mA input that received a signal from an external device
and ‘Current at 20mA’ set point.
8.3.2.2 Capacity control with current limit
The current limit should use a dead band centered on the actual limit value, such that unit capacity
increase is not allowed when current is within this dead band. If unit current is above the dead band,
capacity should be decreased until it is back within the dead band. The current limit dead band should be
5% of the current limit.
8.3.3 Unit current control during defrost
Circuit capacity control during defrost should not be limited by this function. In other words if the unit
has dual circuits this function shall be accomplished by the circuit which is not doing defrost.

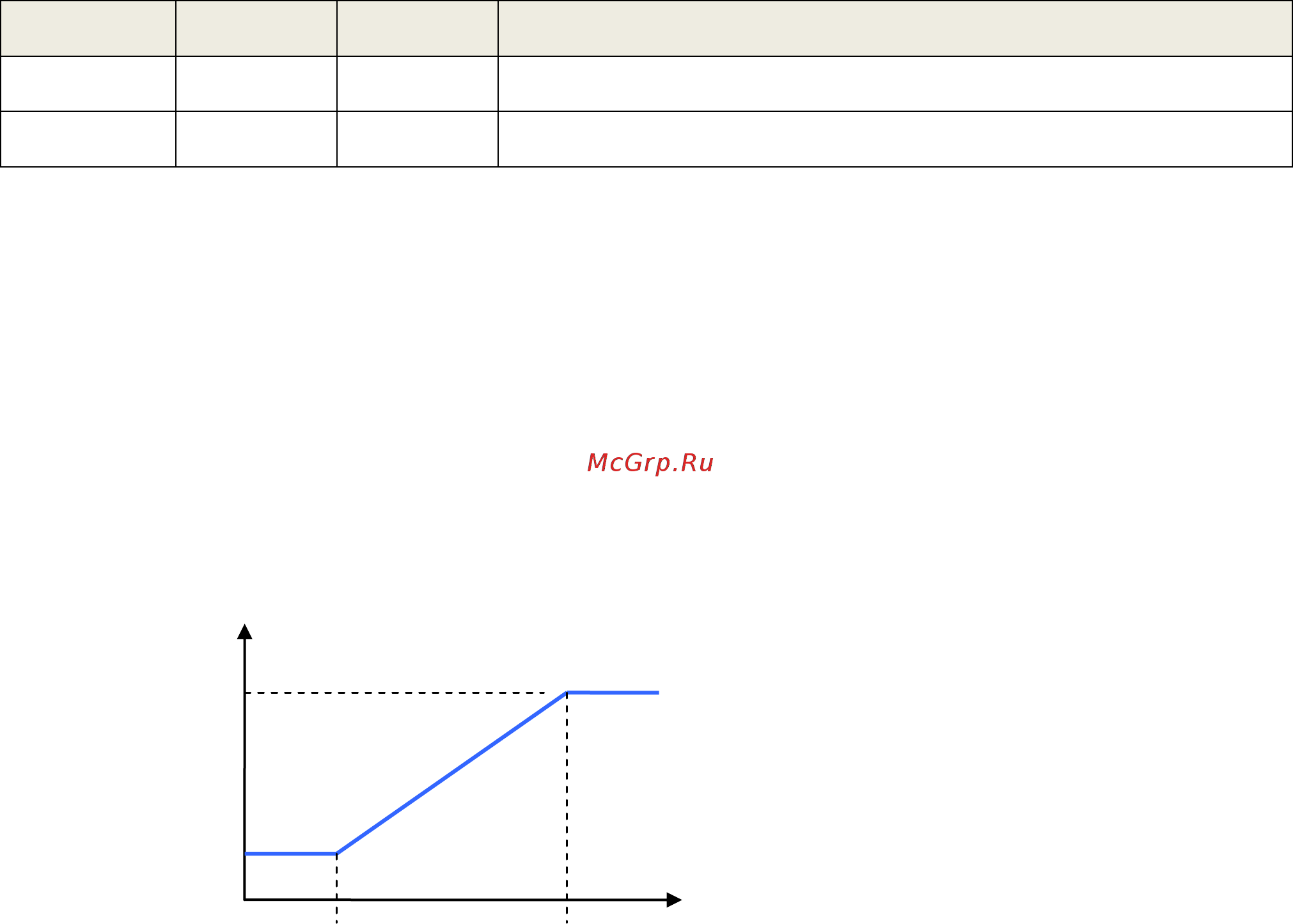

Calculated current (A)
Analog input (mA)
Current at
20mA
0
4mA
20mA
