D-EOMHP00706-14EN - 62/78
8.4 Flexible current limit control
This control is an option. It requires an additional extension module (POL965 address 21) for using
analog input.
8.4.1 Unit setting
Flexible current limit control should be enabled only when Current limit enable digital input is closed and
Flexible current limit set point is set to enable. This control can be enabled during normal operation
without shutdown.
8.4.2 Current limit adjustment
By using an analog input current limit can be adjustable. Actual current limit will be decided by the
following equation.
Actual current limit = Current limit set point x Reduction of current limit
However the dead band of current limit capacity control will not be reduced even if the current limit is
reduced. Anytime it is 5% of Current limit set point on HMI.

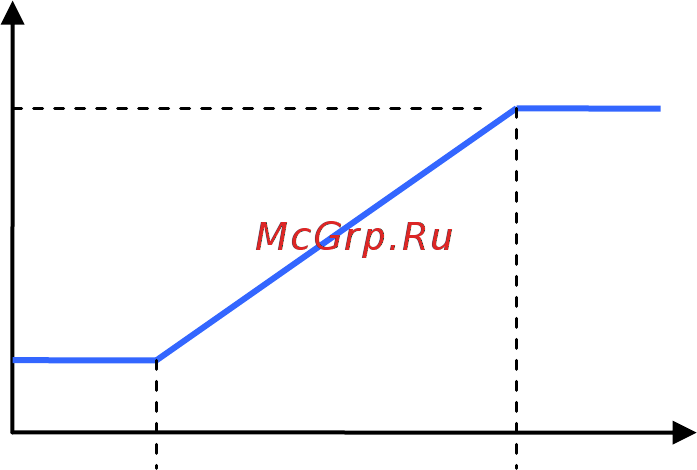

Reduction of current limit (%)
Analog input (mA)
100%
0%
4mA
20mA
