D-EOMHP00706-14EN - 69/78
8.12.2.3.3 Operation after restoring communication
Once the unit restores communication it will start operation as the unit in chiller network. However if the
unit restoring communication is in pumpdown or defrost operation it should continue that, and then the
unit should be back to chiller network after completing that.
8.12.3 Capacity control
Unit capacity will be varied based on LWT error of each LWT as like usual capacity control. However
circuit stage down and compressor stage down shall be forbidden unless more than two units are running.
Master
Status: In
network
Slave1
Status: In
network
Slave2
Status: In
network
Slave3
Status: In
network

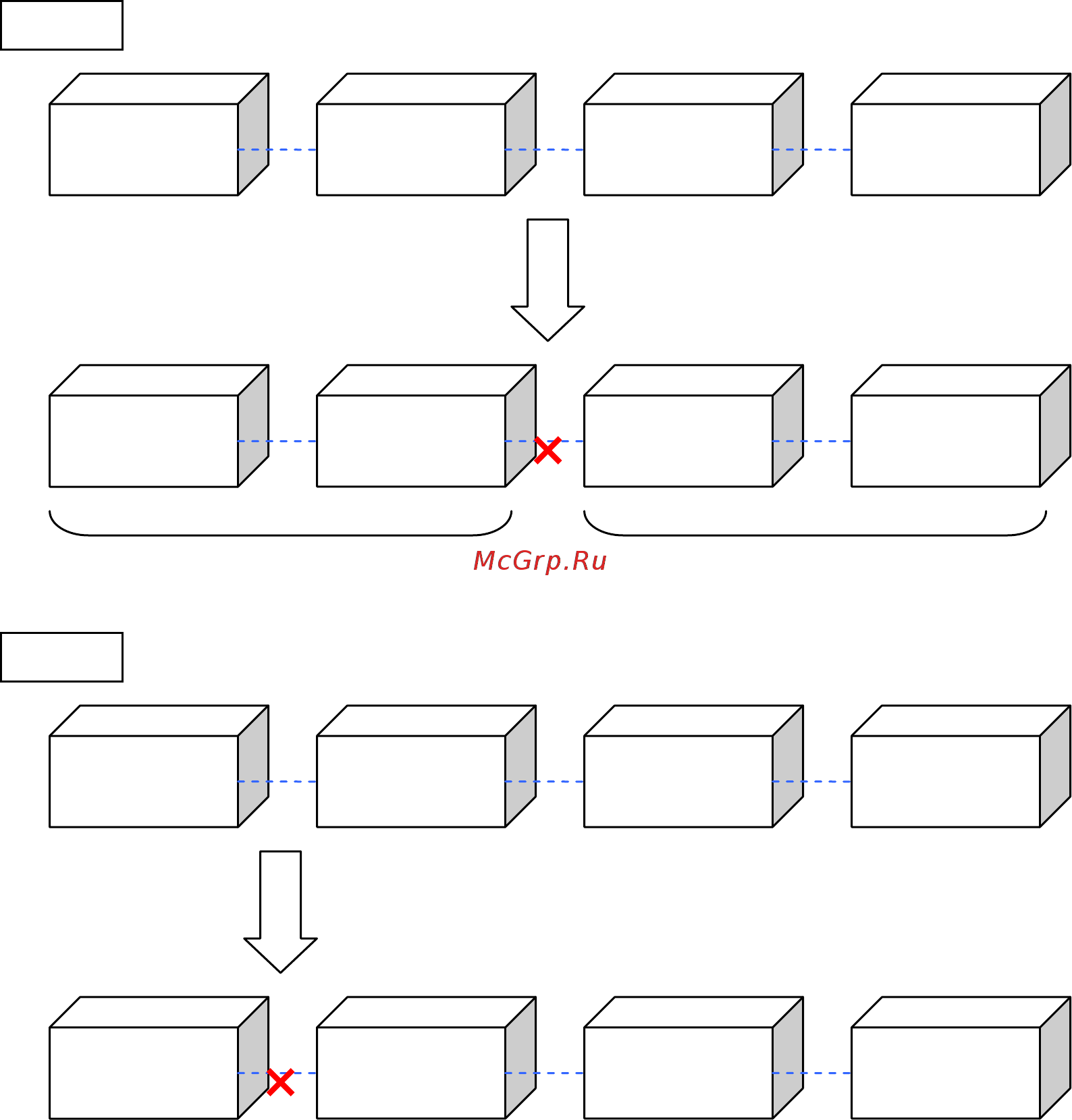

If the communication failure is occurred
between slave2 and slave3
Case1
Master
Status: In
network
Slave1
Status: In
network
Slave2
Status: Stand
alone
Slave3
Status: Stand
alone
These units will operate as stand alone
unit without unit stop.
These units will still be in chiller
network.
Master
Status: In
network
Slave1
Status: In
network
Slave2
Status: In
network
Slave3
Status: In
network
If the communication failure is occurred between
Master and slave2
Case2
Master
Status: Stand
alone
Slave1
Status: Stand
alone
Slave2
Status: Stand
alone
Slave3
Status: Stand
alone
All units will operate as stand alone unit without unit stop.
