3.2 Communication components
Unit will use several communication components and that will depend on how many compressors are in
the unit. The components to be used are defined as the following table. Also the diagram shown as below
indicates how those modules are connected.
Components
Address
Number of compressors
3
4
5
6
8
10
12
BAS interface (Lon, BacNet, Modbus)
-
x
x
x
x
x
x
x
POL687 (MTIII Main controller)
-
x
x
x
x
x
x
x
POL965 (I/O extension module)
18
x
x
x
x
x
x
x
POL965 (I/O extension module)
2
x
x
x
x
x
x
x
POL94U (I/O extension module)
3
x
x
x
x
x
x
x
POL965 (I/O extension module)
4
N/R
N/R
N/R
N/R
x
x
x
POL94U (I/O extension module)
5
N/R
N/R
N/R
N/R
x
x
x
POL965 (I/O extension module)
23
N/R
N/R
N/R
N/R
x
x
x
POL925 (I/O extension module)
21
Opt
Opt
Opt
Opt
Opt
Opt
Opt
POL965 (I/O extension module)
22
Opt
Opt
Opt
Opt
Opt
Opt
Opt
ACS I/F board: A301P
Modbus comm.
Rotary Switch: 0
x
x
x
x
x
x
x
ACS I/F board: A302P
Modbus comm.
Rotary Switch: 1
N/R
N/R
N/R
N/R
x
x
x
Compressor VFD
ACS comm.
Address: 1
x
x
x
x
x
x
x
Compressor VFD
ACS comm.
Address: 2
x
x
x
x
x
x
x
Note: “x” means a unit will use that component.

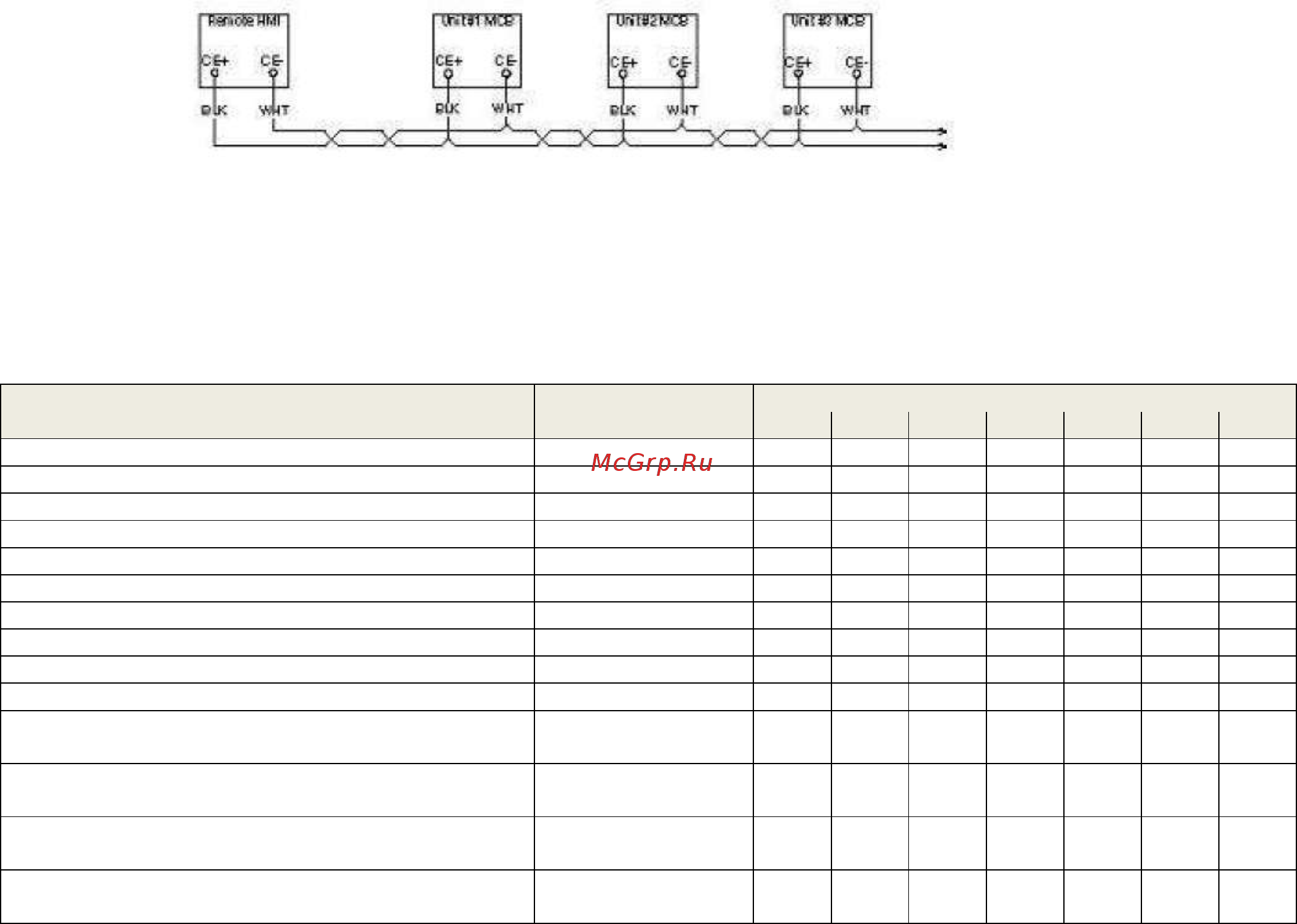

Here is the sample diagram of components connection for 8 compressors unit.
