D-EOMHP00706-14EN - 68/78
8.12.2.2 Communication type
Units in chiller network can communicate with Master or Slave by using shield cable connected in
between POL687 Process bus terminal of each unit. This communication type is KNX TP1. Only master
unit shall be able to communicate with each slave. A slave cannot communicate with other slaves.
8.12.2.3 Communication failure
8.12.2.3.1 Alarm
If communication failure is occurred the unit makes warning alarm to notice that to customer. Detail of
this alarm is defined at Alarm section.
8.12.2.3.2 Operation with communication failure
If there is no master and slave in chiller network due to communication failure the unit operates as a
standalone unit. At that time it is not necessary to stop the unit disconnected from chiller network.
Communication failure does not require unit stop any time.

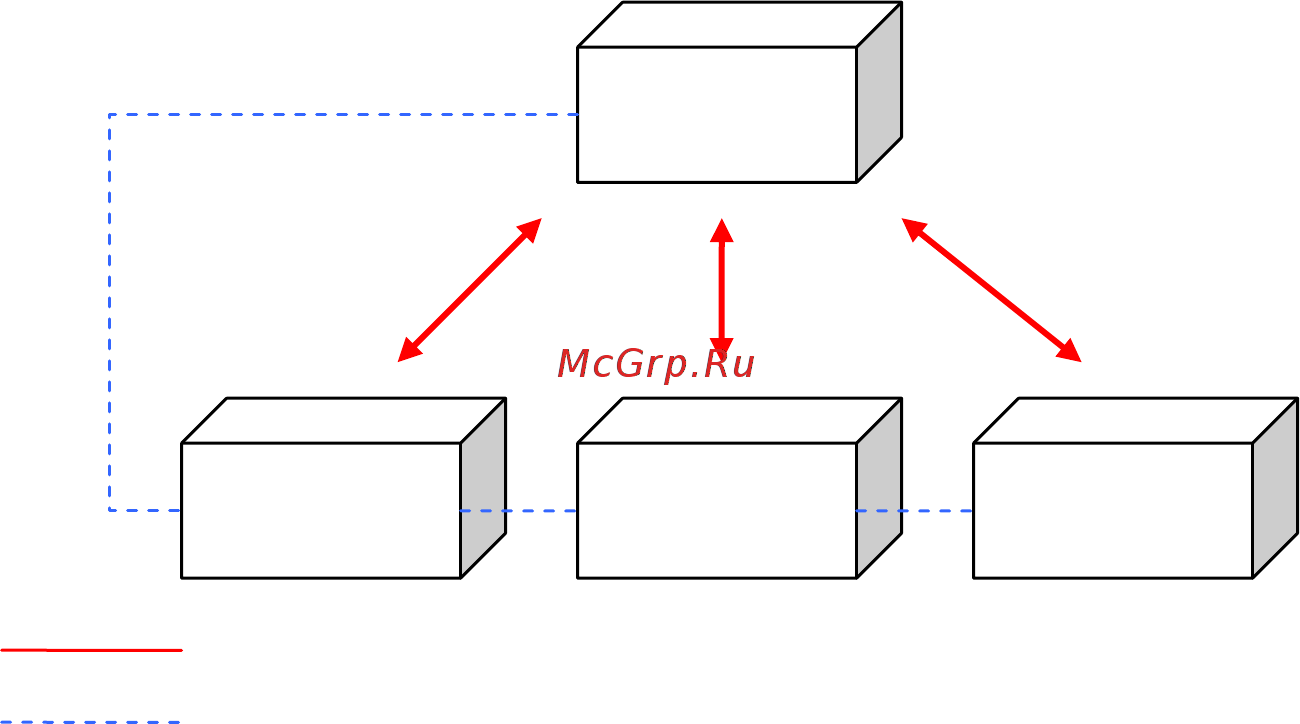

Master
Slave1
Slave2
Slave3
There is no communication
in between slaves.
Actual wiring in chiller network
Communication way
