D-EOMHP00706-14EN - 63/78
8.5 4-20mA Demand limit control
8.5.1 Unit setting
Demand Limit control should be enable only when the ‘Demand limit’ set point is set to ON. This control
can be enabled during normal operation without shutdown.
8.5.2 Demand limit control
8.5.2.1 Capacity limit calculation
The maximum unit capacity can be limited by 4 to 20mA signal on the demand limit analog input on the
HMI. As signal varies from 0% up to 100%, the maximum unit capacity changes from 0% to 100%.
8.5.2.2 Capacity control with demand limit
Unit capacity limits can be used to limit total unit capacity in cool, cool with glycol, heat or heat with
glycol mode. The unit capacity shall be adjusted as needed to meet capacity limit, except that the last
running compressor cannot be turned off to meet a limit lower than the minimum unit capacity.
8.5.2.3 Multiple capacity limits
Multiple limits may be active at any time, and the lowest limit is always used in the unit capacity control.
Soft load, demand limit, and network limit should use a dead band around the actual limit value, such that
unit capacity increase is not allowed within this dead band. If unit capacity is above the dead band,
capacity should be decreased until it is back into the dead band range.
Now the range of dead band shall be varied based on number of circuits.
Number of circuit
Dead band for capacity limit control
Demand limit
Network limit
Soft load
1
7%
7%
7%
2
5%
5%
5%
8.5.3 Demand limit control during defrost
This function shall be ignored during defrost operation.

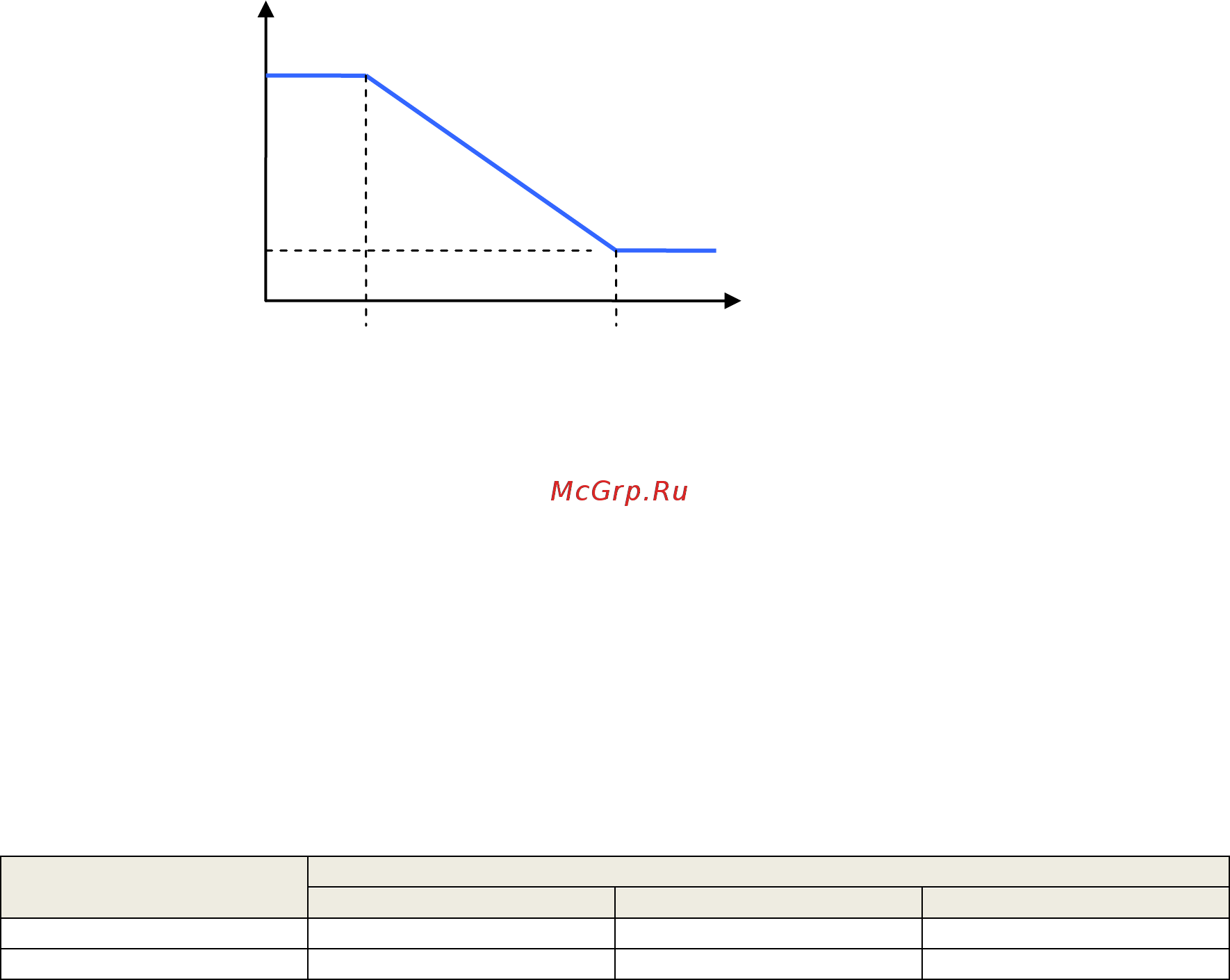

Maximum capacity (%)
Analog input (mA)
100%
0%
4mA
20mA
